ID
1366153
$ 12.56
1-2 weeks delivery time
Size, mm:
- 1/4"
- 3/8"
- 1/2"
- 3/4"
- 1"
- 1 1/4"
- 1 1/2"
- 2"
- 2 1/2"
- 3"
- 4"

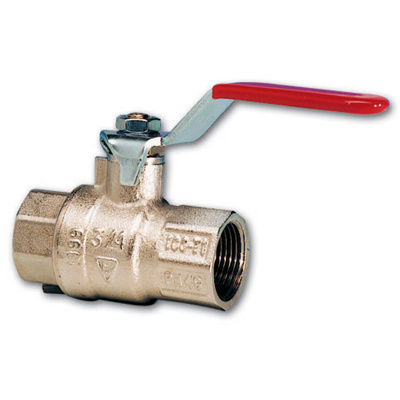

The Guidi 1570 is a lever-operated ball valve with full flow design, made of nickel-plated brass for enhanced corrosion resistance. It features female BSPP threaded connections (ISO 228/1) and is suitable for marine piping systems requiring minimal pressure loss. Available in sizes from 1/4" to 4".
- Description
- Ask a Question
-
Guidi 1570.120002–1570.120013 – Lever Ball Valve F-F, Full Flow, Nickel-Plated Brass, BSPP
The Guidi 1570 ball valve is designed for efficient shut-off and flow control in marine systems. Featuring a full flow (full bore) construction, it ensures maximum fluid passage with minimal pressure loss.
Manufactured from nickel-plated brass, the valve provides excellent resistance to corrosion and long service life in marine environments. The BSPP female threaded connections (ISO 228/1) ensure compatibility with standard marine piping installations.
The lever handle enables quick and reliable operation, making it suitable for both routine control and emergency shut-off applications onboard.
Key Features
- Type: Ball valve (F-F)
- Flow type: Full flow (full bore)
- Material: Nickel-plated brass
- Thread standard: BSPP (ISO 228/1)
- Lever-operated for fast control
Available Variants
Model Thread Size 1570.120002 1/4" 1570.120003 3/8" 1570.120004 1/2" 1570.120005 3/4" 1570.120006 1" 1570.120007 1 1/4" 1570.120008 1 1/2" 1570.120009 2" 1570.120010 2 1/2" 1570.120011 3" 1570.120013 4"
Applications
- Marine piping systems
- Water and fluid shut-off
- High-flow installations
-
