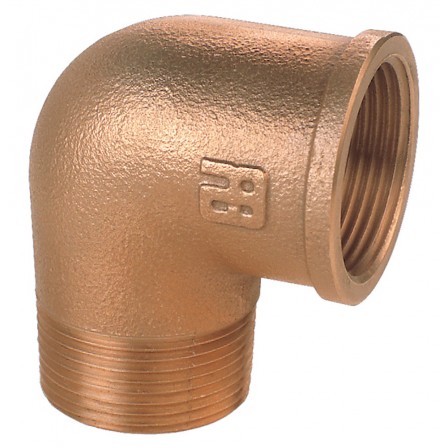

Guidi Bronze 90° Elbow M-F BSP Male x Female Thread Pipe Fittings, Sizes 1/4" to 4"

ID 1365221

$ 8.83

1-2 weeks delivery time

Size, mm:

1/4"
3/8"
1/2"
3/4"
1"
1 1/4"
1 1/2"
2"
2 1/2"
3"
4"

The Guidi 0092B series 90° elbow fittings are manufactured from marine-grade bronze and feature male-to-female BSP threads (EN 10226 / BS 21). Designed for a 90-degree directional change in piping systems, these fittings are available in sizes from 1/4" to 4", covering article numbers 0092B.200002 to 0092B.200013. Suitable for seawater and onboard systems, they provide high corrosion resistance and reliable performance in demanding marine environments.

Description
Ask a Question

Guidi 0092B Series – 90° Elbow M-F BSP Male x Female Thread Bronze Pipe Fittings, Sizes 1/4" to 4"

The Guidi 0092B series 90° elbow fittings are designed for marine piping systems requiring a directional change with mixed thread connections. Manufactured from high-quality bronze, these fittings offer excellent corrosion resistance, making them ideal for seawater and harsh marine environments.

Each fitting features a male-to-female thread configuration, combining BSPP and BSPT standards according to EN 10226 (BS 21), ensuring compatibility with standard marine piping systems and secure installation.

Key Features

Type: 90° elbow fitting
Connection: Male x Female (M-F)
Thread standard: BSPP / BSPT (EN 10226 / BS 21)
Material: Bronze
Suitable for seawater and marine systems
Allows transition between male and female threaded connections
Provides a 90-degree change in pipe direction
High corrosion resistance for aggressive environments

Available Variants

Sizes from 1/4" to 4"
Wide range of diameters for marine piping systems

Article Numbers

Size (Male x Female)	Article Number
1/4" x 1/4"	0092B.200002
3/8" x 3/8"	0092B.200003
1/2" x 1/2"	0092B.200004
3/4" x 3/4"	0092B.200005
1" x 1"	0092B.200006
1 1/4" x 1 1/4"	0092B.200007
1 1/2" x 1 1/2"	0092B.200008
2" x 2"	0092B.200009
2 1/2" x 2 1/2"	0092B.200010
3" x 3"	0092B.200011
4" x 4"	0092B.200013

Technical Specifications

Series	0092B
Type	90° Elbow M-F
Material	Bronze
Thread	BSPP / BSPT (EN 10226 / BS 21)
Connection	Male x Female
Size Range	1/4" to 4"
