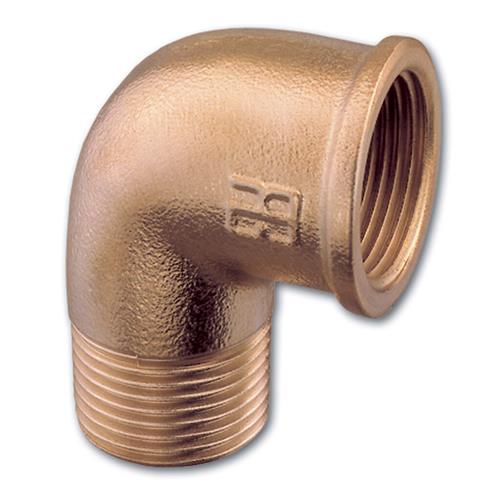

Guidi Brass 90° Elbow M-F BSP Male x Female Thread Pipe Fittings, Sizes 1/8" to 4"

ID 1365208

$ 3.18

1-2 weeks delivery time

Size, mm:

1/4"
1/8"
3/8"
1/2"
3/4"
1"
1 1/4"
1 1/2"
2"
2 1/2"
3"
4"

The Guidi 0092 series 90° elbow fittings are made of yellow brass and feature male-to-female BSP threads (ISO 228/1 BSPP and EN 10226 BSPT). Designed for a 90-degree directional change in piping systems, these fittings are available in sizes from 1/8" to 4", covering article numbers 0092.100001 to 0092.100013. Suitable for marine installations, they provide secure connections and reliable performance in onboard systems.

Description
Ask a Question

Guidi 0092 Series – 90° Elbow M-F BSP Male x Female Thread Brass Pipe Fittings, Sizes 1/8" to 4"

The Guidi 0092 series 90° elbow fittings are designed for marine piping systems requiring a directional change with mixed thread connections. Manufactured from high-quality yellow brass, these fittings provide durability and resistance to corrosion in marine environments.

Each fitting features a male-to-female thread configuration, combining BSPP (ISO 228/1) and BSPT (EN 10226) standards for versatile installation and compatibility with a wide range of piping systems.

Key Features

Type: 90° elbow fitting
Connection: Male x Female (M-F)
Thread standard: BSPP (ISO 228/1) and BSPT (EN 10226)
Material: Yellow brass
Designed for marine and onboard piping systems
Allows transition between male and female threaded connections
Provides a 90-degree change in pipe direction
Corrosion-resistant construction

Available Variants

Sizes from 1/8" to 4"
Wide range of diameters for different piping configurations

Article Numbers

Size (Male x Female)	Article Number
1/8" x 1/8"	0092.100001
1/4" x 1/4"	0092.100002
3/8" x 3/8"	0092.100003
1/2" x 1/2"	0092.100004
3/4" x 3/4"	0092.100005
1" x 1"	0092.100006
1 1/4" x 1 1/4"	0092.100007
1 1/2" x 1 1/2"	0092.100008
2" x 2"	0092.100009
2 1/2" x 2 1/2"	0092.100010
3" x 3"	0092.100011
4" x 4"	0092.100013

Technical Specifications

Series	0092
Type	90° Elbow M-F
Material	Yellow brass
Thread	BSPP (ISO 228/1) / BSPT (EN 10226)
Connection	Male x Female
Size Range	1/8" to 4"
