ID
1366589
$ 8.09
1-2 weeks delivery time
Size, mm:
- 1/4"
- 3/8"
- 1/2"
- 3/4"
- 1"
- 1 1/4"
- 1 1/2"
Item:
- 38 mm
- 8 mm
- 10 mm
- 15 mm
- 16 mm
- 20 mm
- 25 mm
- 30 mm
- 40 mm
The Guidi 0110 series 90° hose connectors are made of yellow brass and designed with BSPP male threads (ISO 228/1). These fittings provide a 90-degree connection between threaded pipe systems and flexible hoses, combining male thread sizes from 1/4" to 1 1/2" with hose diameters from 8 mm to 45 mm. The range includes article numbers such as 0110.100106 to 0110.100167 and is suitable for marine water and onboard systems requiring secure hose connections.
- Description
- Ask a Question
-

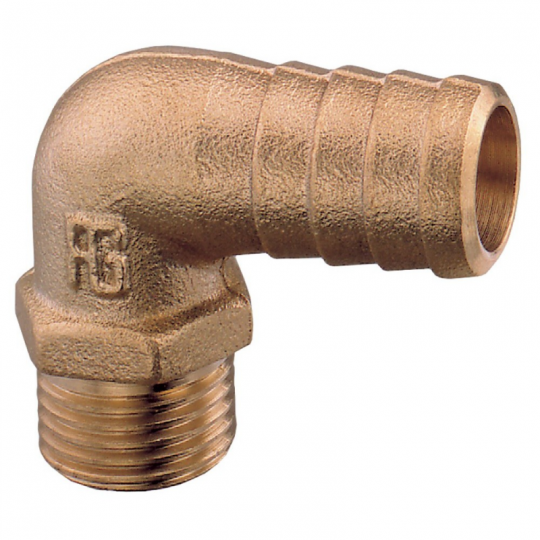

Guidi 0110 Series – 90° Hose Connector M BSP Male Thread Brass Hose Tail Fittings, Various Sizes
The Guidi 0110 series 90° hose connectors are designed to connect flexible hoses to threaded pipe systems at a right angle. Manufactured from high-quality yellow brass, these fittings ensure durability and resistance to corrosion in marine environments.
Each fitting features a BSPP male thread according to ISO 228/1, combined with a hose tail connection for secure attachment of flexible hoses. The 90-degree design allows efficient routing of hoses in confined spaces.
Key Features
- Type: 90° hose connector
- Connection: Male thread to hose tail
- Thread standard: BSPP (ISO 228/1)
- Material: Yellow brass
- Designed for marine and onboard systems
- Allows connection of hoses to threaded fittings
- 90-degree angle for compact installations
- Corrosion-resistant construction
Available Variants
- Thread sizes from 1/4" to 1 1/2"
- Hose diameters from 8 mm to 45 mm
- Multiple combinations for different installation needs
Article Numbers
Thread Size Hose Size (mm) Article Number 1/4" 8 0110.100106 1/4" 10 0110.100107 3/8" 15 0110.100118 1/2" 16 0110.100127 1/2" 20 0110.100130 3/4" 20 0110.100140 1" 25 0110.100150 1" 30 0110.100152 1 1/4" 38 0110.100159 1 1/4" 40 0110.100161 1 1/2" 38 0110.100167
Technical Specifications
Series 0110 Type 90° Hose Connector M Material Yellow brass Thread BSPP (ISO 228/1) Connection Male thread x hose tail Thread Size Range 1/4" to 1 1/2" Hose Size Range 8 mm to 45 mm -
