ID
1300389
$ 1,146.30
1-2 weeks delivery time
-
+
The Vetus MP34KBS4 Engine Panel (Second Generation, 24 V) features four black-face gauges including a tachometer/hour counter (0–4,000 RPM), voltmeter, water-temperature gauge and oil-pressure gauge; includes six monitoring lights, buzzer/alarm, glow-pre-heat/start switch with ignition key, splash-proof IP64 housing, panel cut-out size 255 × 161 mm and built-in depth 121 mm.
- Description
- Ask a Question
-

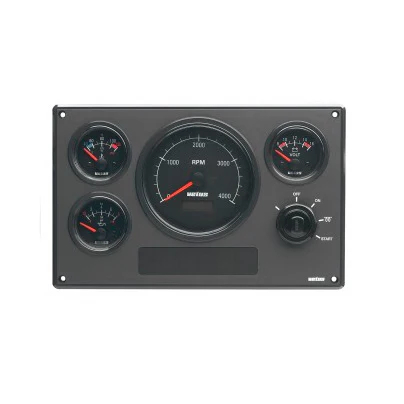

Vetus MP34KBS4 Engine Panel – 24 V, 4 Black Instruments (0–4000 RPM) – Second Generation
The Vetus MP34KBS4 is a premium-quality marine engine instrumentation panel designed for 24-volt systems. This second-generation MP34 series panel integrates four essential black-face analog gauges, monitoring lights, an audible alarm, ignition/starting controls and robust splash-proof housing — making it ideal for installation at your main control station in a marine engine environment.
Main Features
- Tachometer with hour counter, range 0–4,000 RPM.
- Voltmeter for 24 V electrical system supervision.
- Water temperature gauge for monitoring engine cooling system.
- Oil pressure gauge for lubrication system status.
- Six integrated monitoring indicator lights for engine/system alerts.
- Audible buzzer/alarm for critical warnings.
- Glow-pre-heat and start switch integrated with ignition key.
- Black instrument faces for clarity and professional aesthetics.
- Splash-proof design rated to IP64 — suitable for demanding marine conditions. :contentReference[oaicite:2]{index=2}
Technical Specifications
Parameter Value Model MP34KBS4 (Second Generation) Operating voltage 24 V DC Gauges included Tachometer/hour counter (0–4,000 RPM), voltmeter, water-temperature gauge, oil-pressure gauge. Monitoring lights 6 indicator lights Audible alarm / buzzer Yes Ignition/Start switch Glow pre-heat / start with key Panel front size (W × H) 255 mm × 161 mm :contentReference[oaicite:3]{index=3} Built-in depth td>121 mm :contentReference[oaicite:4]{index=4}Ingress protection rating IP64 (splash-proof) :contentReference[oaicite:5]{index=5} Instrument dial colour Black :contentReference[oaicite:6]{index=6}
Installation & Compatibility Notes
This panel uses the MP34 series standard wiring harness and mounting cut-out. According to Vetus specifications in the MP series, the required panel cabling includes types A, B and C. :contentReference[oaicite:7]{index=7} Ensure your 24-V system and existing engine sensors (tachometer sender, temperature sender, oil pressure sender, voltmeter feed) are compatible with this panel’s input ranges.
Summary
The Vetus MP34KBS4 is a robust and feature-rich instrumentation panel tailored for 24-volt marine engine installations. It gives complete monitoring of critical engine systems — RPM with runtime, voltage, temperature, oil pressure — combined with alerts, ignition control and professional appearance. With IP64 protection and standard MP34 dimensions, it’s a reliable choice for high-demand marine environments.
-
