ID
1300391
$ 854.67
1-2 weeks delivery time
-
+
The Vetus MP22KBW2 Engine Panel (Second Generation, 12 V) is equipped with two white-face instruments including a combined 0–4000 RPM tachometer with hour counter, six monitoring lights, an acoustic alarm and a pre-heating/starter switch with removable key. Featuring an IP64 waterproof construction, the panel measures 193 × 161 mm with a built-in depth of 121 mm.
- Description
- Ask a Question
-

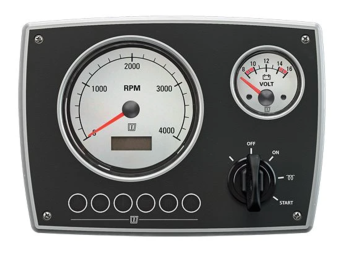

Vetus MP22KBW2 Engine Panel – 12 V, 2 White Instruments (0–4000 RPM) – Second Generation
The Vetus MP22KBW2 is a compact second-generation marine engine panel designed for 12-volt systems and applications where essential monitoring must be combined with a clean, high-contrast white dial appearance. The panel incorporates a combined tachometer and hour counter, six monitoring lights, an acoustic alarm and a secure pre-heating/starter switch with a removable key. Its IP64 splash-proof housing ensures dependable performance in exposed marine installations.
Key Features
- Combined tachometer and hour counter with a measurement range of 0–4000 RPM.
- Six integrated monitoring lights for vital engine and system warnings.
- Acoustic alarm for critical alert notification.
- Pre-heating and starter switch with removable key to enhance operational security.
- White instrument faces for clear readability and bright panel styling.
- Compact dimensions suitable for small helm consoles and restricted spaces.
- IP64 water-resistant construction designed for marine environments.
- Second-generation MP22 series layout and wiring compatibility.
Technical Specifications
Specification Value Model MP22KBW2 (Second Generation) Colour White Operating Voltage 12 V DC RPM Range 0–4000 RPM V-CAN No Instruments Combined tachometer/hour counter + secondary indicator instrument Monitoring Lights 6 integrated lights Acoustic Alarm Yes Length 193 mm Width 161 mm Built-in Depth 121 mm Watertight Rating IP64
Installation Notes
The MP22KBW2 fits the standard MP22 cut-out and is compatible with typical 12-volt tachometer senders and alarm circuits. The removable key switch provides secure start control for private and professional vessels. The white-dial instruments offer improved contrast in bright helm environments.
Summary
The Vetus MP22KBW2 delivers reliable 12-volt engine monitoring in a compact, IP64-rated housing, combining essential instrumentation, alarm functions and secure ignition/start control. Its white-dial design makes it an ideal choice for boaters seeking both functional clarity and a bright, modern visual style.
-
