The Plastimo P205740 RCE+ 80A battery isolator uses MOSFET technology to allow simultaneous charging of two batteries from one alternator without voltage drop, supporting 12V and 24V systems and lithium batteries while protecting the starter battery from discharge.
- Description
- Ask a Question
-

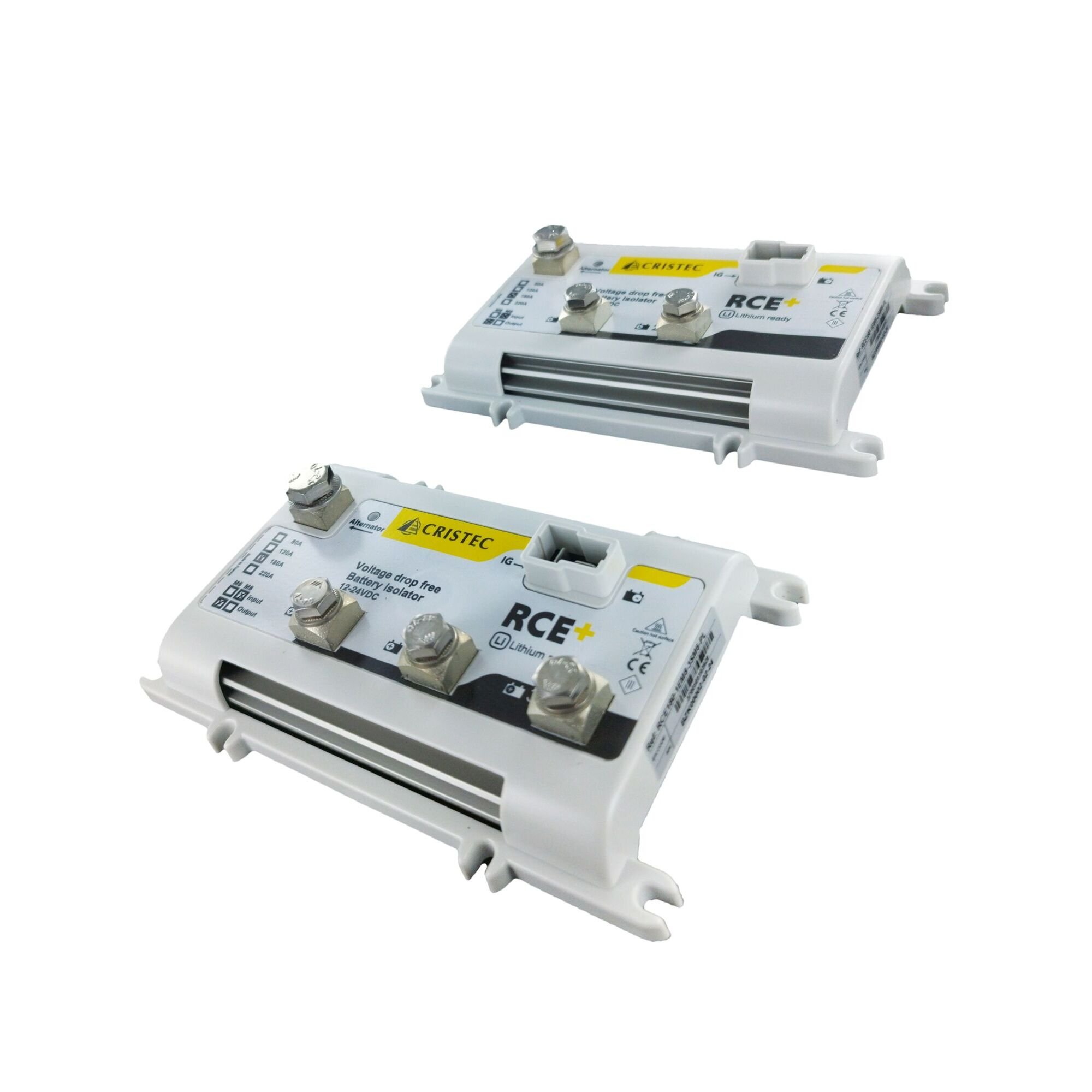

Plastimo P205740 - Battery Isolator 80A 1E 2S M6
The RCE+ 80A battery isolator is designed to allow two batteries to be charged simultaneously from a single alternator without electrically linking them together. This ensures that discharging the service battery will never affect the starter battery. Using advanced MOSFET technology, it delivers extremely low voltage loss compared to traditional diode-based splitters.
With no voltage drop between input and output, there is no need to increase alternator output voltage. The isolator supports both 12 VDC and 24 VDC systems and is fully compatible with LiFePO4 (lithium) batteries. An integrated ignition (IG) input ensures reliable alternator start-up, even on systems requiring voltage feedback.
Key Features
- 80 A MOSFET battery isolator
- Simultaneous charging of two batteries
- No voltage drop compared to diode splitters
- Compatible with 12 V and 24 V systems
- Suitable for lithium (LiFePO4) batteries
- Ignition-ready with IG input
Technical Data
Charge Current 80 A Operating Voltage 12 – 24 V Number of Outlets 2 Dimensions 159 x 100 x 36 mm Length 159 mm Height 100 mm Width 100 mm Depth 36 mm Weight 0.45 kg
Brand: Cristec
Barcode: 03700505104148 -
