The Plastimo P205747 is an adjustable smart battery coupler relay designed to manage and limit alternator charging current for lithium battery banks. With an adjustable current range from 50A to 120A, it protects lithium batteries from excessive charging while consuming minimal power. Compatible with both 12V and 24V systems, it meets international safety and ignition protection standards.
- Description
- Ask a Question
-

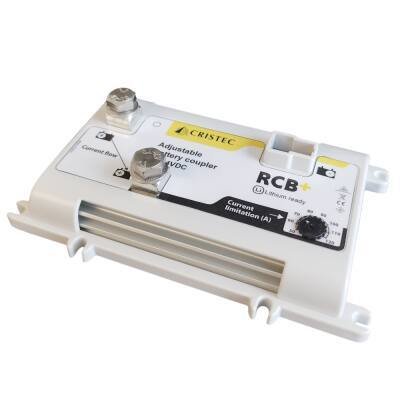

Plastimo P205747 - Adjustable Smart Battery Coupler Relays 50-120A
The Plastimo P205747 adjustable smart battery coupler relay is specifically designed to manage and limit alternator charging current when supplying a lithium battery bank. With an adjustable nominal current range from 50A to 120A, it protects lithium batteries from excessive charging currents while ensuring reliable energy transfer.
This intelligent relay operates on both 12V and 24V DC systems and features extremely low power consumption, making it ideal for continuous installation in marine and vehicle electrical systems. Its robust construction complies with international safety and ignition protection standards, ensuring dependable operation even in demanding environments.
Key Features
- Adjustable charging current from 50A to 120A
- Designed for lithium battery banks
- Low power consumption
- Compatible with 12V and 24V DC systems
- Ignition-protected and standards compliant
Technical Data
Nominal Current 50 A – 120 A Voltage 12–24 V DC Number of Inputs 2 Consumption 1.2 mA @12V / 0.9 mA @24V Dimensions 159 x 100 x 36 mm Length 159 mm Width 100 mm Height 36 mm Depth 36 mm Weight 0.45 kg Standards RoHS / IEC60335-1 / ISO8846 / SAE J1171 (Ignition Protected)
Brand: Cristec
-
