ID
1380112
$ 154.68
1-2 weeks delivery time
Current (Amps):
- 40
- 70
- 100
- 120
- 150
- 200
The Osculati Panel Mount Watertight Circuit Breakers provide combined overload protection and power isolation for marine windlasses and bow thrusters. Designed for recessed panel installation, these resettable thermal circuit breakers comply with SAE J1171 and CE28846 Vapor Proof standards, feature enlarged 5/16" terminals for easier cable connection, IP66 waterproof protection, and are available in current ratings from 40A to 200A. They can also be used as general battery disconnect switches in higher current versions.
- Description
- Ask a Question
-

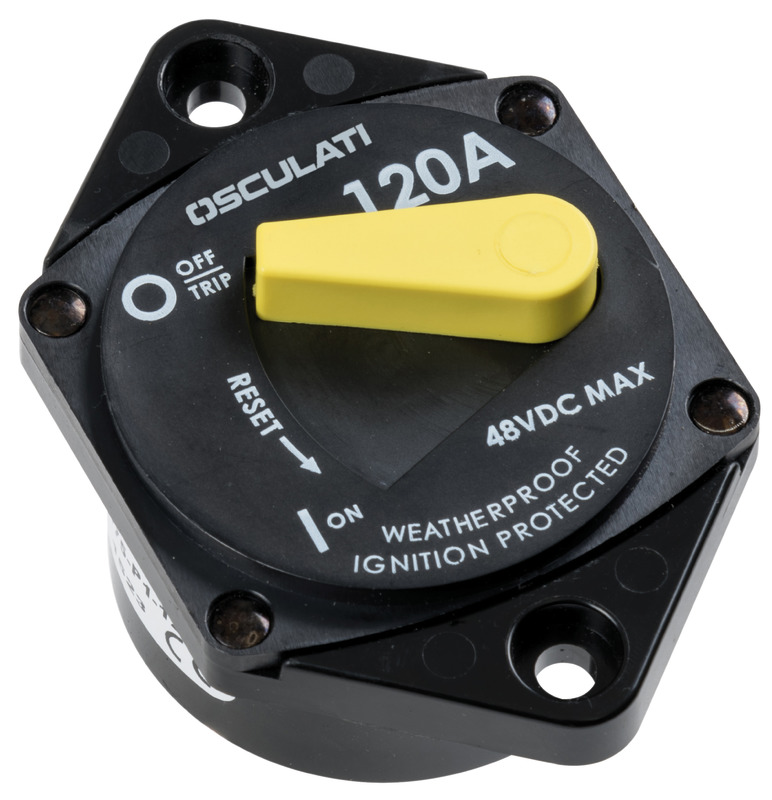

Osculati Panel Mount Watertight Circuit Breakers for Windlass & Bow Thruster (40–200A)
The Osculati Panel Mount Circuit Breaker range is designed to provide reliable overload protection and manual power isolation for marine windlasses, bow thrusters, and other high-current onboard electrical systems. These thermal circuit breakers combine the functions of a resettable fuse and an ON/OFF disconnect switch in a single waterproof unit.
Manufactured in the USA in accordance with SAE J1171 and CE28846 Vapor Proof standards, the breakers are built for demanding marine environments and offer approximately 3,000 operating cycles. The enlarged 5/16" electrical terminals simplify installation of larger marine cables, while the recessed panel-mount design requires only a simple circular mounting hole.
With an IP66 waterproof rating and support for electrical systems up to 48V DC, these circuit breakers are suitable for protecting electric windlasses, bow thrusters and other heavy-duty DC equipment. Versions rated from 100A to 200A can also be used as general battery disconnect switches.
Key Features
- Marine thermal circuit breaker with integrated ON/OFF switch;
- Resettable overload protection;
- Functions as both circuit breaker and battery isolator;
- Recessed panel-mount installation;
- 5/16" heavy-duty electrical terminals;
- IP66 waterproof construction;
- Manufactured to SAE J1171 and CE28846 Vapor Proof standards;
- Approximately 3,000 operating cycles;
- Maximum operating voltage: 48V DC;
- Operating temperature: -40°C to +85°C.
Available Versions
Osculati Code Current Rating Installation Application 02.710.50 40 A Panel Mount (Recessed) Windlass / Bow Thruster 02.710.10 70 A Panel Mount (Recessed) Windlass / Bow Thruster 02.710.20 100 A Panel Mount (Recessed) Windlass / Bow Thruster / Battery Disconnect 02.710.22 120 A Panel Mount (Recessed) Windlass / Bow Thruster / Battery Disconnect 02.710.40 150 A Panel Mount (Recessed) Windlass / Bow Thruster / Battery Disconnect 02.710.41 200 A Panel Mount (Recessed) Windlass / Bow Thruster / Battery Disconnect
Technical Specifications
Protection Type Resettable Thermal Circuit Breaker Installation Recessed Panel Mount Electrical Terminals 5/16" Maximum Voltage 48V DC Interrupt Capacity 5000A @ 14VDC, 3000A @ 28VDC, 1500A @ 48VDC Protection Rating IP66 Operating Temperature -40°C to +85°C Standards SAE J1171, CE28846 Vapor Proof Operating Life Approx. 3,000 operating cycles
Applications
- Electric anchor windlasses;
- Bow thrusters;
- High-current DC marine circuits;
- Battery isolation (100A–200A versions);
- Professional and recreational marine electrical systems.
-
