ID
1380146
$ 53.43
1-2 weeks delivery time
Current (Amps):
- 60
- 80
- 120
- 150
- 200
- 250
The Osculati Heavy Duty Automatic Reset Magnetothermal Circuit Breakers provide reliable overload protection for marine windlasses, bow thrusters, and other high-current DC systems without requiring manual reset. Built to SAE J1625 and SAE J1171 standards, these IP67 waterproof circuit breakers feature automatic reset operation, heavy-duty 3/8" electrical terminals, and are available in current ratings from 60A to 250A for professional marine installations operating up to 48V DC.
- Description
- Ask a Question
-

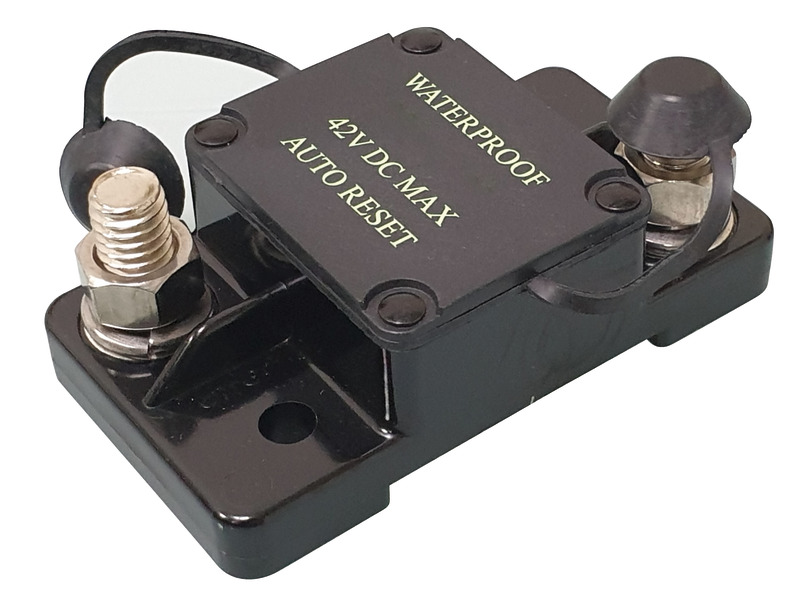

Osculati Heavy Duty Automatic Reset Waterproof Magnetothermal Circuit Breakers for Windlass & Bow Thruster (60–250A)
The Osculati Heavy Duty Automatic Reset Magnetothermal Circuit Breaker series is designed to provide dependable overload protection for high-current marine electrical systems. These heavy-duty circuit breakers automatically restore operation after overload conditions have cleared, eliminating the need for manual resetting.
Manufactured in accordance with SAE J1625 and SAE J1171 standards, the breakers are suitable for electric anchor windlasses, bow thrusters and other demanding DC marine applications. The automatic reset design provides continuous circuit protection while reducing downtime in systems where uninterrupted operation is important.
The robust IP67 waterproof housing is built for harsh marine environments and features heavy-duty 3/8" electrical terminals for secure high-current cable connections. The units operate on DC systems up to 48V and are available in current ratings from 60A to 250A.
Key Features
- Heavy-duty automatic reset magnetothermal circuit breaker;
- Automatic reset after overload protection;
- Designed for marine DC electrical systems;
- IP67 waterproof construction;
- Manufactured to SAE J1625 and SAE J1171 standards;
- Heavy-duty 3/8" electrical terminals;
- Maximum operating voltage: 48V DC;
- Operating temperature: -32°C to +92°C;
- Suitable for high-current windlass and thruster installations.
Available Versions
Osculati Code Current Rating Electrical Terminals Application 02.753.60 60 A 3/8" Windlass & Bow Thruster 02.753.80 80 A 3/8" Windlass & Bow Thruster 02.753.12 120 A 3/8" Windlass & Bow Thruster 02.753.15 150 A 3/8" Windlass & Bow Thruster 02.753.20 200 A 3/8" Windlass & Bow Thruster 02.753.25 250 A 3/8" Windlass & Bow Thruster
Technical Specifications
Protection Type Automatic Reset Magnetothermal Circuit Breaker Reset Method Automatic Installation Surface Mount Electrical Terminals 3/8" Maximum Voltage 48V DC Protection Rating IP67 Operating Temperature -32°C to +92°C Standards SAE J1625 / SAE J1171 Duty Rating Heavy Duty
Applications
- Electric anchor windlasses;
- Bow thrusters;
- High-current DC marine electrical systems;
- Marine power distribution circuits;
- Professional and recreational vessels.
-
