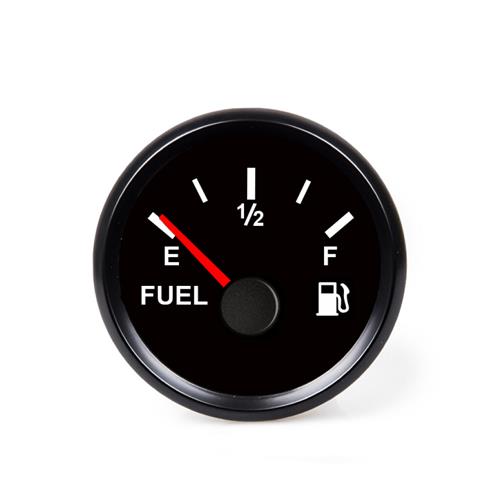

The Hollex HFLG1552 Series fuel gauge is an analog instrument designed for 9–32V DC systems (12V/24V) with a resistance range of 0–190 Ohm. It features a Ø59 mm round housing with a 52 mm installation cut-out, IP67 protection rating, and an E–1/2–F scale display. Constructed from stainless steel 316 and polyester, and available in black or white versions, it provides reliable fuel level indication for marine applications.
- Description
- Ask a Question
-
Hollex HFLG1552 Series – Fuel Gauge 9-32V, 0–190 Ohm, Ø59 mm, Cut-out Ø52 mm, IP67 (Black / White)
The Hollex HFLG1552 Series fuel gauges are designed for accurate fuel level monitoring in marine electrical systems. They operate within a wide voltage range of 9–32V DC, making them suitable for both 12V and 24V installations.
These analog gauges feature a clear E–1/2–F scale for intuitive reading and are compatible with 0–190 Ohm senders. The compact round design with a 59 mm outer diameter and a 52 mm installation cut-out allows easy integration into dashboards and control panels.
With an IP67 protection rating, the instruments are resistant to water and dust, ensuring reliable operation in marine environments. The construction combines stainless steel 316 and polyester for durability and corrosion resistance.
Key Features
- Analog fuel gauge with E–1/2–F scale display
- Voltage range: 9–32V DC (12V / 24V systems)
- Resistance range: 0–190 Ohm
- IP67 protection class for marine use
- Round housing design
- Available in black and white versions
- Red backlight for improved visibility
- Durable construction: stainless steel 316 and polyester
Available Variants
Product Number Color Resistance Installation Diameter HFLG1552B Black 0–190 Ohm 52 mm HFLG1552W White 0–190 Ohm 52 mm
Technical Specifications
Brand Hollex Instrument Type Fuel Gauge Display Type Analog Voltage 9–32V DC (12V / 24V) Resistance 0–190 Ohm Scale E – 1/2 – F Protection Class IP67 Shape Round Product Diameter 59 mm Installation Diameter 52 mm Material Stainless Steel 316, Polyester -
