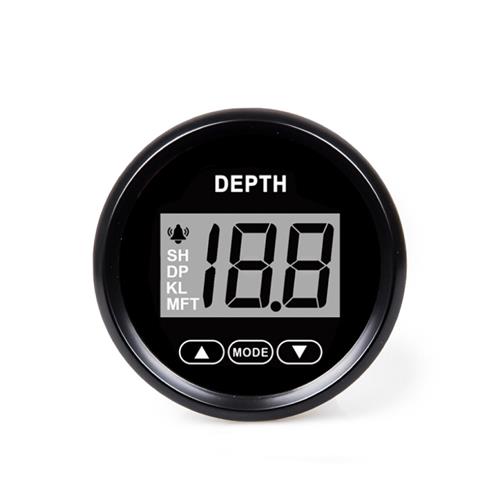

The Hollex HEDM2552 Series is a digital depth meter designed for 9–32V DC systems (12V/24V), supplied with a mirror transducer and 7.5 m cable. It features a Ø59 mm round housing with a 52 mm installation cut-out, IP67 protection rating, and digital display. Constructed from stainless steel 316 and polyester, and available in black or white versions, it provides reliable depth measurement for marine applications.
- Description
- Ask a Question
-
Hollex HEDM2552 Series – Digital Depth Meter 9-32V with Mirror Transducer, Ø59 mm, Cut-out Ø52 mm, IP67 (Black / White)
The Hollex HEDM2552 Series digital depth meters are designed for accurate depth monitoring in marine environments. They operate within a voltage range of 9–32V DC, making them suitable for both 12V and 24V onboard systems.
Each unit is supplied with a mirror transducer and a 7.5 meter cable, allowing straightforward installation and reliable signal transmission. The digital display provides clear depth readings, while the compact round housing with a 59 mm diameter and 52 mm installation cut-out ensures easy integration into dashboards and control panels.
With an IP67 protection rating, the instrument is resistant to water and dust, making it suitable for demanding marine conditions. The construction combines stainless steel 316 and polyester for durability and corrosion resistance.
Key Features
- Digital depth meter with clear display
- Voltage range: 9–32V DC (12V / 24V systems)
- Supplied with mirror transducer
- Cable length: 7.5 meters
- IP67 protection class
- Round housing design
- Available in black and white versions
- Durable construction: stainless steel 316 and polyester
Available Variants
Product Number Color Display Type Installation Diameter HEDM2552B Black Digital 52 mm HEDM2552W White Digital 52 mm
Technical Specifications
Brand Hollex Instrument Type Depth Meter Display Type Digital Voltage 9–32V DC (12V / 24V) Protection Class IP67 Shape Round Product Diameter 59 mm Installation Diameter 52 mm Cable Length 7.5 m Material Stainless Steel 316, Polyester -
