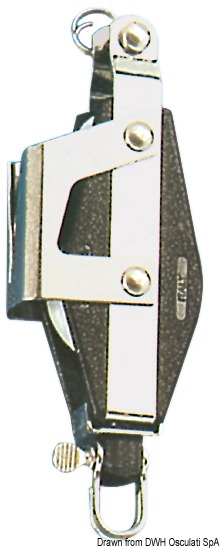

Name: Viadana Plastinox Fiddle Block with Becket, Cam Cleat and Swivel or Fixed Head for Rope up to 8-12 mm, 34-56 mm Sheave
SKU: Osculati-55.111.00

Viadana Plastinox Fiddle Block with Becket, Cam Cleat and Swivel or Fixed Head for Rope up to 8-12 mm, 34-56 mm Sheave

ID 1391306

$ 46.94

1-2 weeks delivery time

Diameter, mm:

Viadana Plastinox Fiddle Block with Becket, Cam Cleat and Swivel or Fixed Head is a black nylon control block reinforced with stainless steel stiffeners. The range includes 8, 10 and 12 mm rope versions with 34-56 mm sheaves, breaking loads of 800-1450 kg and working loads of 300-580 kg.

Description
Ask a Question

Viadana Plastinox Fiddle Block with Becket, Cam Cleat and Swivel or Fixed Head for Rope up to 8-12 mm, 34-56 mm Sheave

Viadana Plastinox fiddle block with becket, cam cleat and swivel or fixed head combines multiple control features in the Plastinox black nylon and stainless steel reinforced construction.

Technical Features
- Brand: Viadana
- Series: Plastinox
- Version: Fiddle with becket, cam cleat and swivel or fixed head
- Material: Black nylon
- Reinforcement: Stainless steel stiffeners
- Maximum rope diameter: 8-12 mm depending on version
- Sheave diameter: 34-56 mm depending on version
Available Variants

Max. Rope Diameter Sheave Diameter Breaking Load Working Load Osculati Code

8 mm 34 mm 800 kg 300 kg 55.111.00

10 mm 45 mm 950 kg 370 kg 55.111.01

12 mm 56 mm 1450 kg 580 kg 55.111.02

Max. Rope Diameter	Sheave Diameter	Breaking Load	Working Load	Osculati Code
8 mm	34 mm	800 kg	300 kg	55.111.00
10 mm	45 mm	950 kg	370 kg	55.111.01
12 mm	56 mm	1450 kg	580 kg	55.111.02
