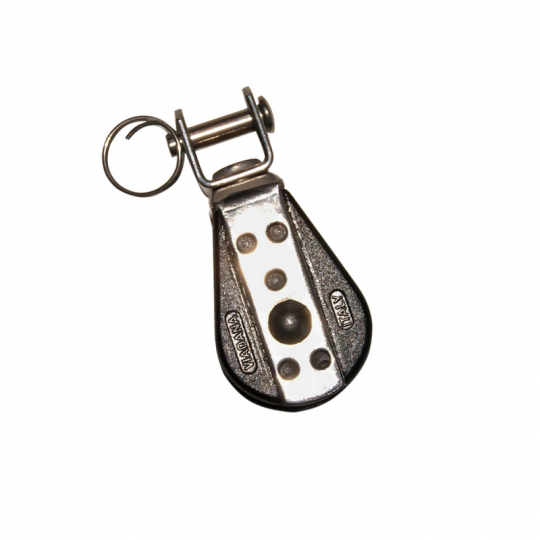

Viadana Delrin Ball Bearing Single Block with Swivel Toggle U-Shaped Head for Rope up to 6-8 mm, 22-28 mm Sheave

ID 1391321

$ 18.61

1-2 weeks delivery time

Diameter, mm:

Viadana Delrin Ball Bearing Single Swivel Block with U-Shaped Toggle Head is a compact rigging block made of black nylon with stainless steel stiffeners and a ball-bearing sheave system. Available for ropes up to 6 or 8 mm with 22 or 28 mm sheaves, it provides breaking loads of 700-750 kg and working loads of 100-150 kg.

Description
Ask a Question

Viadana Delrin Ball Bearing Single Swivel Block with U-Shaped Toggle Head for Rope up to 6-8 mm, 22-28 mm Sheave - Osculati 55.027.06 / 55.027.08

Viadana Delrin Ball Bearing Single Swivel Block with U-Shaped Toggle Head is designed for sailing and rigging applications where a compact single block with a swivelling attachment is required. The block body is made of black nylon and reinforced with stainless steel stiffeners, while the sheave runs on ball bearings for smooth rope movement.

The U-shaped swivel toggle head provides a flexible attachment configuration. Two versions are available for ropes up to 6 mm and 8 mm, with 22 mm and 28 mm sheaves respectively. Breaking loads range from 700 to 750 kg, while working loads range from 100 to 150 kg.

Product Features

Brand: Viadana
Series: Delrin Ball Bearing
Product type: Single swivel block
Head type: Swivel toggle, U-shaped
Body material: Black nylon
Reinforcement: Stainless steel stiffeners
Bearing type: Ball bearings
Available rope capacities: Up to 6 mm or 8 mm
Available sheave diameters: 22 mm or 28 mm

Available Variants

Max. Rope Diameter	Sheave Diameter	Overall Height	Breaking Load	Working Load	Viadana Article	Osculati Code	FNI Product Number
6 mm	22 mm	43 mm	700 kg	100 kg	10.52	55.027.06	7878005
8 mm	28 mm	-	750 kg	150 kg	-	55.027.08	-
