ID
1391324
$ 16.47
1-2 weeks delivery time
Diameter, mm:
- 6
- 8
- 10
Viadana Delrin Ball Bearing Single Block with Becket and Fixed Head is a compact sailing block made of black nylon with stainless steel stiffeners and a ball-bearing sheave system. Available for ropes up to 6, 8 and 10 mm with 22, 28 and 38 mm sheaves, the range offers breaking loads from 700 to 950 kg and working loads from 100 to 230 kg.
- Description
- Ask a Question
-

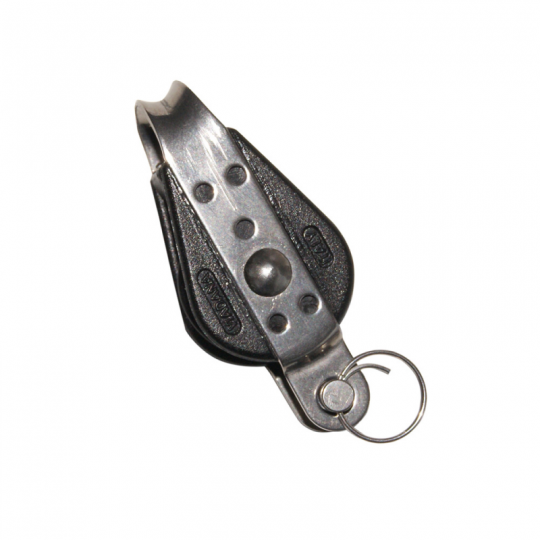

Viadana Delrin Ball Bearing Single Block with Becket and Fixed Head for Rope up to 6-10 mm, 22-38 mm Sheave - Osculati 55.028.06 / 55.028.08 / 55.028.10
Viadana Delrin Ball Bearing Single Block with Becket and Fixed Head is designed for sailing and rigging systems requiring a compact single block with an additional becket attachment point. The block body is made of black nylon and reinforced with stainless steel stiffeners, while the pulley runs on ball bearings for smooth operation.
The range includes three sizes for ropes up to 6, 8 and 10 mm. Depending on the version, the sheave diameter ranges from 22 to 38 mm, with breaking loads from 700 to 950 kg and working loads from 100 to 230 kg. The 6 mm / 22 mm version is additionally identified as Viadana article 10.51.
Product Features
- Brand: Viadana
- Series: Delrin Ball Bearing
- Product type: Single block with becket
- Head type: Fixed head
- Body material: Black nylon
- Reinforcement: Stainless steel stiffeners
- Bearing type: Ball bearings
- Configuration: Single sheave with becket
- Available rope capacities: Up to 6 mm, 8 mm or 10 mm
- Available sheave diameters: 22 mm, 28 mm or 38 mm
Available Variants
Max. Rope Diameter Sheave Diameter Breaking Load Working Load Osculati Code Viadana Article 6 mm 22 mm 700 kg 100 kg 55.028.06 10.51 8 mm 28 mm 750 kg 150 kg 55.028.08 Not provided 10 mm 38 mm 950 kg 230 kg 55.028.10 Not provided
Additional Article Reference
- Viadana article: 10.51
- Corresponding Osculati code: 55.028.06
- FNI Product Number: 7878003
- Overall height: 43 mm
- Maximum working load: 100 kg
- Breaking load: 700 kg
-
