ID
1394084
$ 35.11
1-2 weeks delivery time
Diameter, mm:
- 5
- 6
- 8
- 10
- 12
Size:
- 15
- 20
- 25
- 30
- 40
- 50
- 60
- 80
- 100
- 120

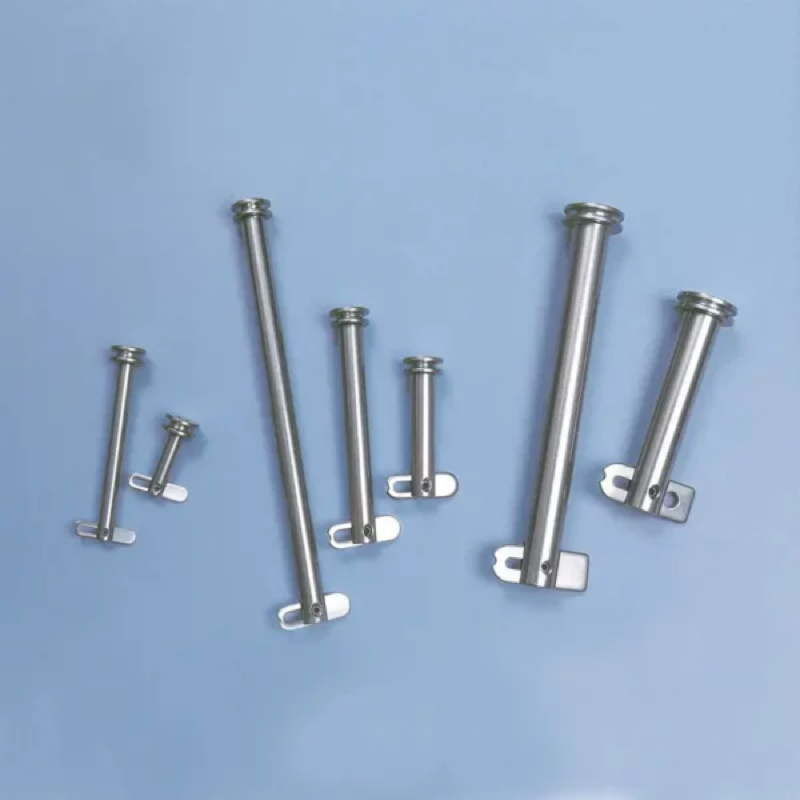

SeaSure stainless steel drop nose pins are designed for secure fastening in marine, rigging and technical applications. The pins are turned from stainless steel bar and use a transverse rotating end with a locking mechanism to help prevent accidental loosening and keep the pin centred. Available in 5 mm, 6 mm, 8 mm, 10 mm and 12 mm diameters with effective lengths from 15 mm to 120 mm. A groove around the head allows attachment of a retaining line or steel wire.
- Description
- Ask a Question
-
SeaSure Stainless Steel Drop Nose Pins, Ø5-12 mm, 15-120 mm Effective Length
SeaSure drop nose pins are designed for secure fastening in marine, rigging and technical applications.
The pins are turned from stainless steel bar material. The end can be rotated transversely to lock the pin in position, while the locking mechanism helps prevent accidental loosening and keeps the pin centred.
A groove around the head allows a retaining line or steel wire to be attached. The stated pin length represents the effective length.
The range is available in diameters from 5 mm to 12 mm and effective lengths from 15 mm to 120 mm.
Product Features
- Brand: SeaSure
- Product type: Drop nose pin
- Material: Stainless steel
- Turned from stainless steel bar material
- Transverse rotating end for locking
- Locking mechanism helps prevent accidental loosening
- Designed to keep the pin centred
- Groove around the head for attaching line or steel wire
- Available diameters: 5 mm, 6 mm, 8 mm, 10 mm and 12 mm
- Effective length range: 15-120 mm
- All stated lengths are effective lengths
Available Variants
Article Number Pin Diameter Effective Length Size EAN 701311 5 mm 15 mm 5 x 15 mm 5036830081853 701312 5 mm 20 mm 5 x 20 mm 5036830081860 701313 5 mm 25 mm 5 x 25 mm 5036830081877 701314 5 mm 30 mm 5 x 30 mm 5036830081884 701315 5 mm 40 mm 5 x 40 mm 5036830081891 701317 5 mm 50 mm 5 x 50 mm 5036830081914 701321 6 mm 20 mm 6 x 20 mm 5036830081921 701322 6 mm 25 mm 6 x 25 mm 5036830081938 701323 6 mm 30 mm 6 x 30 mm 5036830081945 701324 6 mm 40 mm 6 x 40 mm 5036830081952 701325 6 mm 50 mm 6 x 50 mm 5036830081969 701326 6 mm 60 mm 6 x 60 mm - 701328 6 mm 80 mm 6 x 80 mm 5036830081990 701333 8 mm 30 mm 8 x 30 mm 5036830082065 701334 8 mm 40 mm 8 x 40 mm 5036830082072 701335 8 mm 50 mm 8 x 50 mm 5036830082089 701336 8 mm 60 mm 8 x 60 mm 5036830082096 701338 8 mm 80 mm 8 x 80 mm - 701340 8 mm 100 mm 8 x 100 mm 5036830082133 701342 8 mm 120 mm 8 x 120 mm 5036830082157 701343 10 mm 30 mm 10 x 30 mm 5036830082188 701344 10 mm 40 mm 10 x 40 mm 5036830082201 701345 10 mm 50 mm 10 x 50 mm 5036830082218 701346 10 mm 60 mm 10 x 60 mm 5036830082225 701348 10 mm 80 mm 10 x 80 mm 5036830082249 701350 10 mm 100 mm 10 x 100 mm 5036830082270 701352 10 mm 120 mm 10 x 120 mm 5036830082294 701353 12 mm 30 mm 12 x 30 mm 5036830082331 701354 12 mm 40 mm 12 x 40 mm 5036830082355 701355 12 mm 50 mm 12 x 50 mm 5036830082362 701356 12 mm 60 mm 12 x 60 mm 5036830082379 701358 12 mm 80 mm 12 x 80 mm 5036830082393 701360 12 mm 100 mm 12 x 100 mm 5036830080030 701362 12 mm 120 mm 12 x 120 mm 5036830080054 -
