ID
1393825
$ 148.56
1-2 weeks delivery time
-
+
SeaSure 01.16 is a 25 mm general purpose high-load block for slow-running rope applications. It features a chrome-plated brass sheave, a plain chrome-plated brass bearing running on stainless steel, and an electropolished 316 stainless steel body with hollow rivet. The block is suitable for ropes up to 5 mm and has an MBS / breaking load of 950 kg with an SWL of 475 kg. Typical applications include halyards, outhauls, kicking straps, cunninghams, traveller control lines and leech lines.
- Description
- Ask a Question
-

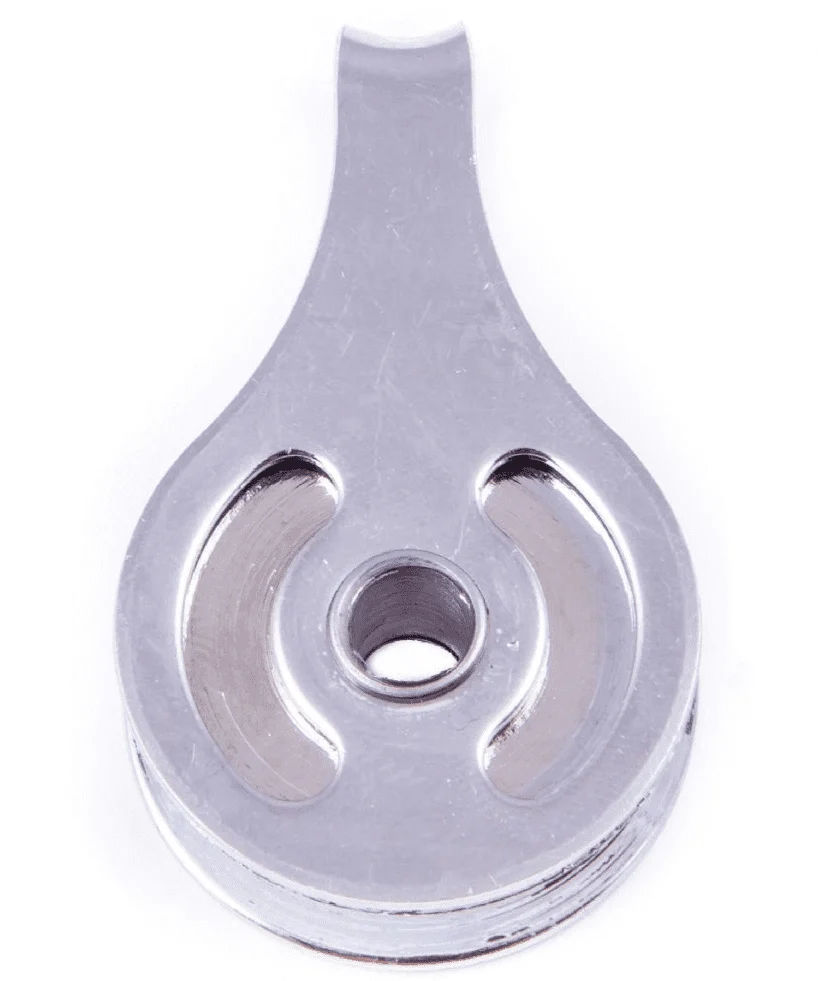

SeaSure 01.16 25 mm Chrome-Plated Brass Sheave General Purpose High-Load Block
SeaSure 01.16 is a 25 mm general purpose block designed for medium- to high-load applications with slow-running ropes. The block is intended to carry higher loads than standard Mini blocks and is commonly used with Dyneema, Spectra and Kevlar lines.
The block uses a chrome-plated brass sheave with a plain chrome-plated brass bearing running on stainless steel. Its body is manufactured from electropolished 316 stainless steel and incorporates a hollow rivet.
The stainless steel side plates help prevent highly abrasive ropes from cutting into the block structure. The block is suitable for ropes up to 5 mm in diameter.
The SeaSure 01.16 has a maximum breaking strength (MBS) of 950 kg and a safe working load (SWL) of 475 kg. Typical applications include halyards, outhauls, kicking straps, cunninghams, traveller control lines and leech lines.
Product Features
- Brand: SeaSure
- Manufacturer article number: 01.16
- Product type: General purpose high-load block
- Series: Mini
- Block type: Fixed
- Sheave size: 25 mm
- Sheave material: Chrome-plated brass
- Bearing type: Plain chrome-plated brass on stainless steel
- Body material: Electropolished 316 stainless steel
- Rivet type: Hollow rivet
- Maximum rope diameter: 5 mm
- Number of sheaves: 1
- MBS / breaking load: 950 kg
- SWL: 475 kg
- Becket: No
- Clamp: No
- Swivel: No
- Ratchet: No
- Colour: Stainless steel
Compatible Rope Types
- Dyneema
- Spectra
- Kevlar
- Wire rope
Typical Applications
- Halyards
- Outhauls
- Kicking straps
- Cunninghams
- Traveller control lines
- Leech lines
Technical Specifications
Parameter Specification Manufacturer Article 01.16 Series Mini Block Type Fixed Size 25 mm Number of Sheaves 1 Sheave Material Chrome-plated brass Bearing Plain chrome-plated brass on stainless steel Body Construction Electropolished 316 stainless steel with hollow rivet Maximum Rope Diameter 5 mm MBS / Breaking Load 950 kg SWL 475 kg Becket No Clamp No Swivel No Ratchet No Colour Stainless steel -
