SeaSure 01.14 is a 25 mm deck lead high-load block designed for medium- to high-load applications with slow-running ropes. It uses a brass sheave with stainless steel side plates and a simple plain bearing, with an MBS / breaking load of 950 kg and an SWL of 475 kg. The block is designed for direct mounting to a flat surface using 5 mm bolts or screws and is commonly used with Dyneema, Spectra and Kevlar lines. Maximum rope diameter is 5 mm according to the supplied catalogue data.
- Description
- Ask a Question
-

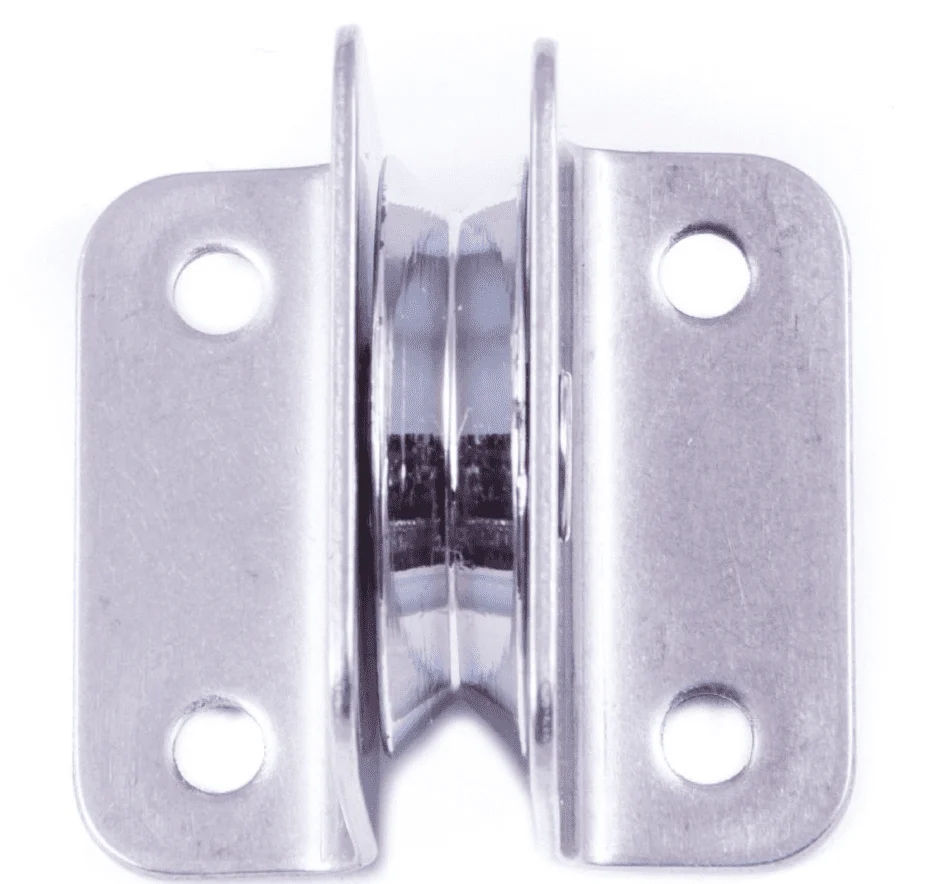

SeaSure 01.14 25 mm Brass Sheave Deck Lead High-Load Block
SeaSure 01.14 is a 25 mm deck lead block designed to carry higher loads than standard Mini blocks. It is intended for medium- to high-load applications with slow-running ropes and is commonly used with Dyneema, Spectra and Kevlar lines.
The block uses a brass sheave together with stainless steel side plates. The stainless steel side plates are designed to help protect highly abrasive ropes from cutting into the block structure.
The deck lead configuration is designed for direct mounting to a flat surface using 5 mm bolts or screws, creating a fixed rope-routing point.
The SeaSure 01.14 has a maximum breaking strength (MBS) of 950 kg and a safe working load (SWL) of 475 kg. The supplied catalogue data specifies a maximum rope diameter of 5 mm.
Product Features
- Brand: SeaSure
- Manufacturer article number: 01.14
- Product type: Deck lead high-load block
- Series: Mini
- Block type: In deck
- Sheave size: 25 mm
- Sheave material: Brass
- Side plate material: Stainless steel
- Bearing type: Simple / plain bearing
- Mounting type: Deck lead / flat surface mounted
- Mounting hardware size: 5 mm bolts or screws
- Maximum rope diameter: 5 mm
- Number of sheaves: 1
- MBS / breaking load: 950 kg
- SWL: 475 kg
- Swivel: No
- Ratchet: No
- Clamp: No
- Becket: No
- Colour: Stainless steel
Applications and Rope Types
- Medium- to high-load applications
- Slow-running ropes
- Deck-mounted rope routing
- Dyneema lines
- Spectra lines
- Kevlar lines
Technical Specifications
Parameter Specification Manufacturer Article 01.14 Series Mini Block Type In deck Mounting Type Deck lead / flat surface mounted Size 25 mm Number of Sheaves 1 Sheave Material Brass Bearing Simple / plain bearing Mounting Hardware 5 mm bolts or screws Maximum Rope Diameter 5 mm MBS / Breaking Load 950 kg SWL 475 kg Swivel No Ratchet No Clamp No Becket No Colour Stainless steel -
