ID
1304421
$ 28.56
1-2 weeks delivery time
-
+
The Wichard 1444 Captive Pin Bow Shackle is compact and durable, made from 316L stainless steel. The captive pin remains attached, reducing vibration risk and allowing single-handed use. It is suitable for industrial lifting and multiple line attachments, with CE marking for safety.
- Description
- Ask a Question
-

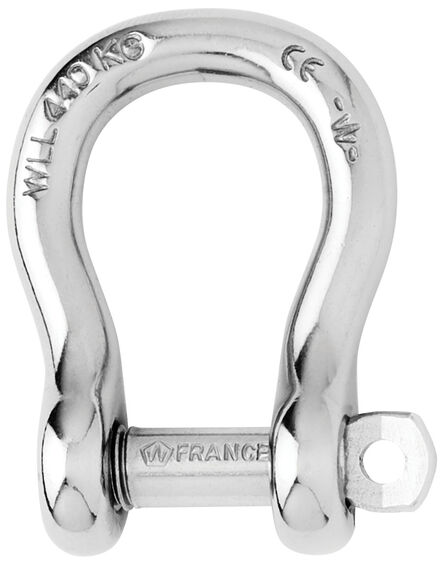

Wichard 1444 - Captive Pin Bow Shackle 8 mm
Compact and durable captive pin bow shackle crafted from 316L stainless steel. Designed for reliability and safety, it ensures the pin remains attached to the body even when open, reducing risk from vibrations and allowing one-handed operation. Suitable for industrial lifting with CE marking.
- Forged in 316L stainless steel
- Pin remains connected at all times
- Secure lock into one of the indentations
- Prevents accidental loosening due to vibrations
- High working and breaking loads
- Single-handed use for added safety
- Only for industrial lifting applications (WLL)
- CE marked
- Ideal when ample room is required
- Allows attachment of several lines or cables
- Materials: 316 stainless steel grade
- Working load (kg): 1110
- WLL (kg): 740
- Breaking load (kg): 3700
- Weight (g): 75

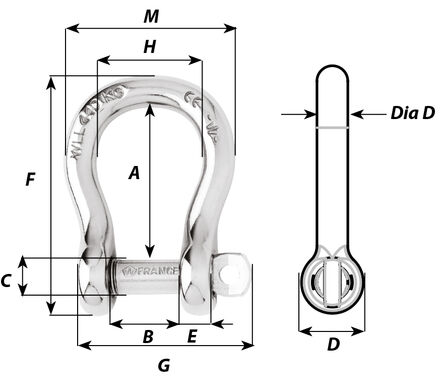

- A (mm): 37
- B (mm): 16
- C (mm): 9
- D (mm): 18
- D diameter (mm): 8
- E (mm): 8
- F (mm): 56
- G (mm): 41
- H (mm): 25
- M (mm): 42
- Item number: WR1444
-
