$ 62.61
1-2 weeks delivery time
Diameter, mm:
- 5
- 6
- 8
Item:
- 2 pcs
The Plastimo Stainless Steel Captive Pin Shackles are designed for secure marine rigging, deck hardware, and general fastening applications. Manufactured from corrosion-resistant AISI 316 stainless steel, these shackles feature a captive pin that prevents accidental pin loss during installation and maintenance. The range includes 5 mm, 6 mm, and 8 mm versions with safe working loads up to 700 kg and breaking loads up to 1,400 kg.
- Description
- Ask a Question
-

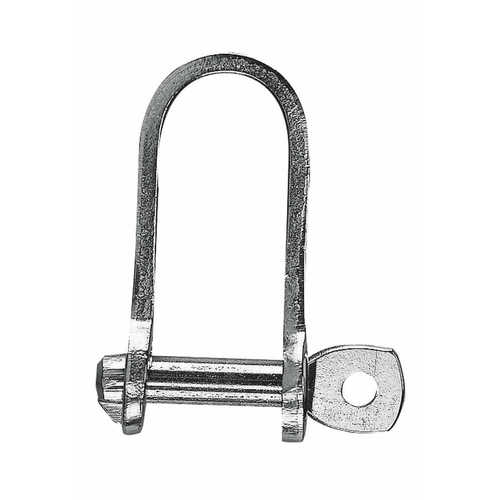

Plastimo Stainless Steel Captive Pin Shackles
The Plastimo Stainless Steel Captive Pin Shackles are engineered for reliable fastening in marine environments. Manufactured from premium AISI 316 stainless steel, these shackles provide excellent corrosion resistance and long service life, making them suitable for sailing yachts, motorboats, rigging systems, and general onboard hardware.
The captive pin design keeps the pin permanently attached to the shackle body, reducing the risk of loss during installation or maintenance. The product range includes both standard and long-body versions for different installation requirements and connection geometries.
Features
- Original Plastimo marine hardware
- Manufactured from corrosion-resistant AISI 316 stainless steel
- Captive pin design prevents accidental pin loss
- Suitable for marine rigging and deck hardware
- Available in standard and long-body configurations
- Excellent durability for demanding marine environments
Available Variations
Plastimo SKU Diameter Type Length Width Breaking Load Safe Working Load 16729 Ø5 mm Standard Captive Pin 37 mm 14 mm 1100 kg 500 kg 16730 Ø6 mm Long (LG) Captive Pin 43 mm 16 mm 1400 kg 700 kg 16731 Ø8 mm Long (LG) Captive Pin — — — —
Technical Specifications
Brand Plastimo Product Type Captive Pin Shackle Material AISI 316 Stainless Steel Available Diameters Ø5 mm, Ø6 mm, Ø8 mm Pin Type Captive Pin Body Style Standard / Long (LG) Marine Environment Yes Corrosion Resistant Yes
Applications
- Standing and running rigging
- Blocks and pulleys
- Deck fittings
- Marine hardware connections
- General fastening on sailboats and motorboats
-
