ID
1299670
$ 3,081.27
1-2 weeks delivery time
-
+
The Harken G3247B is a dual-sheave 32mm adjustable CB car designed for demanding sail trimming, combining recirculating Torlon® ball bearings with stainless steel carriers that pivot 60°. Wide sheaves hold two sheets, roller and sideload bearings manage loads, and sleeve-bearing control blocks add durability. It measures 231 mm by 85 mm, weighs 1846 g, and has a maximum working load of 2268 kg with a breaking load of 4536 kg, compatible with R32 track.
- Description
- Ask a Question
-

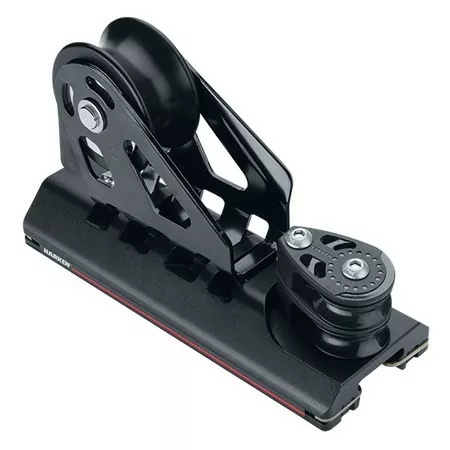

Harken G3247B - 32mm Adjustable CB Car 2 Sheaves, 4:1

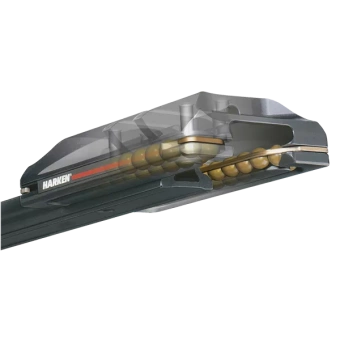

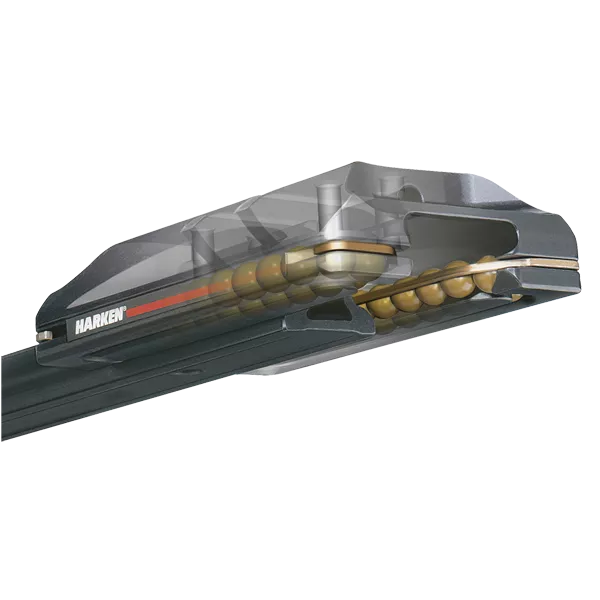

Designed for demanding sail trimming, this dual-sheave adjustable genoa lead car combines recirculating Torlon® ball bearings with stainless steel carriers that pivot 60°. The wide sheaves hold two sheets, and high-performance roller bearings manage radial loads while sideload balls take care of thrust loads. Car-mounted, sleeve-bearing control blocks provide robust durability. Compatible with all Harken end controls, with optional kits for upgrades up to 4:1.
- Sheave Ø: 76 mm / 3 in
- Length: 231 mm / 9 1/16 in
- Width: 85 mm / 3 3/8 in
- Weight: 1846 g / 65.12 oz
- Maximum working load: 2268 kg / 5000 lb
- Breaking load: 4536 kg / 10000 lb
- Use with track/rail: R32
- Item number: HKG3247B
-
