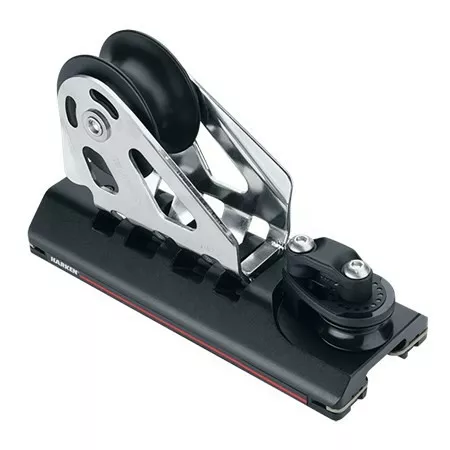

The Harken G323B is a 32mm ESP adjustable CB car with sleeve bearing sheaves and Torlon® recirculating ball bearings for smooth adjustments. The stainless steel sheave carrier pivots 60°, wide sheaves hold two sheets, and car-mounted sleeve-bearing blocks ensure durability. It measures 231 mm in length, 85 mm in width, weighs 1688 g, and supports a maximum working load of 2268 kg with a breaking load of 4536 kg, for use with R32 track.
- Description
- Ask a Question
-
Harken G323B - 32mm ESP Adjustable CB Car Sheave, Dead End, 3:1

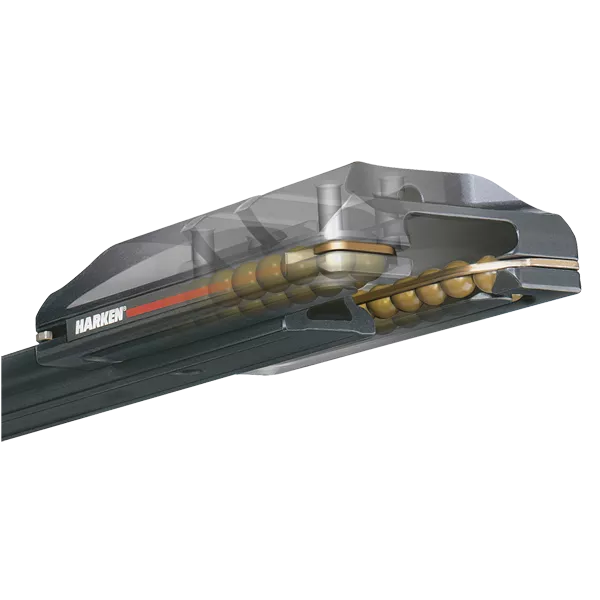

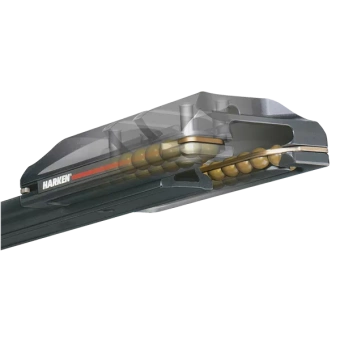

This version of the adjustable genoa lead car features ESP sleeve bearing sheaves for consistent performance. Torlon® recirculating ball bearings ensure easy adjustment under load. The stainless steel sheave carrier pivots 60° to follow changing lead angles, while the wide sheave holds two sheets during sail handling. Car-mounted, sleeve-bearing control blocks guarantee durability, and the car is fully compatible with Harken end controls. Upgrade kits are available to reach 4:1.
- Sheave Ø: 76 mm / 3 in
- Length: 231 mm / 9 1/16 in
- Width: 85 mm / 3 3/8 in
- Weight: 1688 g / 59.54 oz
- Maximum working load: 2268 kg / 5000 lb
- Breaking load: 4536 kg / 10000 lb
- Use with track/rail: R32
- Item number: HKG323B
-
