The Harken CLR600EA12H electric mooring winch is designed for sailors and power yacht owners seeking a compact, high-performance solution. With a flush-stowing design, it saves deck space while providing exceptional line-handling capability and torque. Operating on 12V power, it is suitable for boats between 13.7 and 18.3 meters in length, offering a power output of 700W and weighing 18 kg. It accommodates line diameters from 12 mm to 18 mm, with a maximum line speed of 18 m/min and a holding load of 600 kg. Its innovative features include a lightweight drum with five rotating aluminum columns and internal LED lights for nighttime mooring.
- Description
- Ask a Question
-
Harken CLR600EA12H - 600 CLR Aluminum Electric Mooring Winch - 12V Horizontal
The Harken® CLR™ mooring winch is engineered for sailors and power yacht owners seeking a compact, high-performance solution. Its flush-stowing design saves deck space while providing exceptional line-handling capability and torque.
- Available power: Electric horizontal 12V
- Suitable boat length: 13.7 - 18.3 m (45 - 60 ft)
- Power output: 700 W
- Weight: 18 kg (39.7 lb)
- Minimum line diameter: 12 mm (1/2 in)
- Maximum line diameter: 18 mm (11/16 in)
- Maximum line speed: 18 m/min (59 ft/min)
- Maximum holding load: 600 kg (1320 lb)
- Maximum pulling load: 300 kg (660 lb)

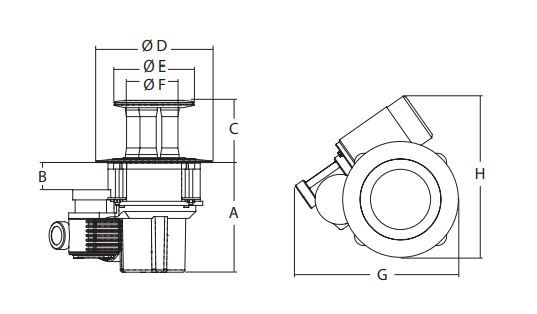

- Dimensions:
- A: 250 mm (9 13/16 in)
- B minimum: 15 mm (5/8 in)
- B maximum: 75 mm (2 15/16 in)
- C: 110 mm (4 5/16 in)
- D: 200 mm (7 7/8 in)
- E: 144 mm (5 11/16 in)
- F: 94 mm (3 11/16 in)
- G: 318 mm (12 17/32 in)
- H: 355 mm (14 in)
- Item number: HKWCLR600EA12H
- Innovative features include five rotating aluminum columns forming a lightweight drum for superior line-holding power, low-speed torque, and internal LED lights for nighttime mooring.
- Compact design allows installation of multiple CLR winches on yachts, reducing reliance on engines or thrusters for stern-to-dock mooring.
-
