The Harken 80.3STEP12H is an electric self-tailing winch designed for efficient sail trimming with minimal effort. It features a sandblasted drum optimized for high-tech lines, offers three speeds for smooth operation, and is equipped with a powerful motor for handling various sail sizes. This winch is ideal for sailors seeking a reliable and easy-to-use solution for their trimming needs.
- Description
- Ask a Question
-

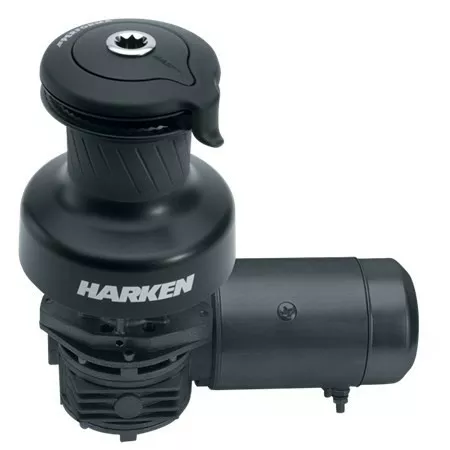

Harken 80.3STEP12H - Electric Self-Tailing Performa™ Winch 3 Speed, 12V, Horizontal 80.3STE Black
The Harken Performa™ electric winch is designed for efficient trimming of sails of any size with minimal effort. Its sandblasted drum optimizes performance for halyards and sheets using small-diameter high-tech lines. With three speeds, the winch provides smooth and controlled operation at the push of a button.
- Minimum line Ø: 10 mm / 3/8 in
- Maximum line Ø: 18 mm / 11/16 in
- Configuration: Self-tailing
- Speed: 3
- Drum Ø: 175 mm / 6 7/8 in
- Base Ø: 287 mm / 11 5/16 in
- Height: 327 mm / 12 7/8 in
- Weight: 22.7 kg / 50.1 lb
- Weight of Winch and Motor: 38.2 kg / 84.3 lb
- Motor weight: 15.5 kg / 34.2 lb
- Line entry height: 164 mm / 6 7/16 in
- Fastener circle: 233 mm / 9 3/16 in
- Fasteners: M10 SH mm / 3/8 SH in, number: 8
- Gear ratios: 2.76 / 9.94 / 32.12
- Power ratios: 8.01 / 28.85 / 93.24
- Racing disconnect rod: B80.3PDR
- E: 81 mm / 3 3/16 in
- F: 221 mm / 8 11/16 in
- G: 272 mm / 10 11/16 in
- Item number: HKW80.3STEP12H
-
