ID
1299348
$ 238.12
1-2 weeks delivery time
-
+
The Harken 6295 Element Footblock Lockoff features forged aluminum sideplates with minimal metal protecting the 80 mm composite bearing sheave, hardcoat-anodized corrosion resistance, and a design that offers durability and a cost-effective solution.
- Description
- Ask a Question
-

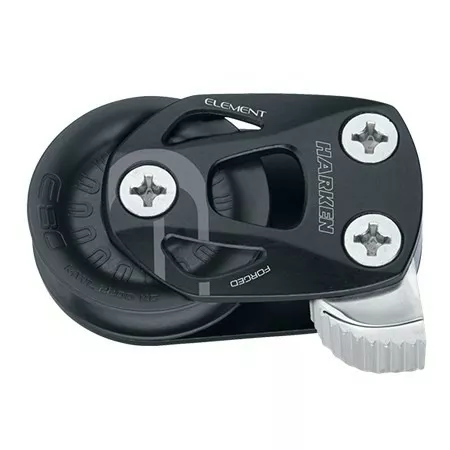

Harken 6295 - 80mm Aluminum Element Footblock Lockoff
The Harken 6295 Element Footblock Lockoff features sideplates crafted from forged aluminum with compound curves, delivering a blend of modern design and exceptional strength. Its design uses minimal metal to protect the 80 mm sheave, which incorporates a durable composite bearing for long-lasting corrosion resistance. Hardcoat-anodized sideplates further enhance durability, making this block a robust and cost-effective choice.
- Sheave Ø: 80 mm (3 1/8 in)
- Length: 114 mm (4 1/2 in)
- Height: 36 mm (1 7/16 in)
- Weight: 410 g (14.4 oz)
- Maximum line Ø: 16 mm (5/8 in)
- Maximum working load: 2200 kg (4850 lb)
- Breaking load: 4400 kg (9700 lb)
- Fasteners: 10 mm
- A dimension: 19.5 mm (3/4 in)
- B dimension: 61 mm (2 13/32 in)
- C dimension: 80 mm (3 1/8 in)
- D dimension: 19.8 mm (25/32 in)
- Item number: HK6295
-
