ID
1299351
$ 460.40
1-2 weeks delivery time
-
+
The Harken 6298 Element Double Footblock combines forged aluminum sideplates with minimal metal protecting the 80 mm composite bearing sheave, hardcoat-anodized corrosion resistance, and a strong design suitable for demanding applications.
- Description
- Ask a Question
-
Harken 6298 - 80mm Aluminum Element Double Footblock

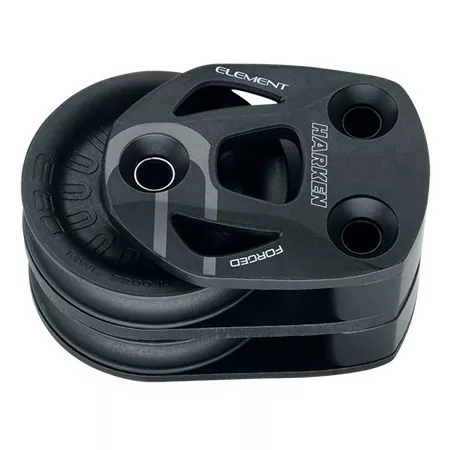

The Harken 6298 Element Double Footblock combines forged aluminum sideplates with compound curves for a strong yet modern design. It uses minimal metal to protect the 80 mm composite bearing sheave, which is corrosion resistant for long life. Hardcoat-anodized sideplates add to the block’s robustness, making it a reliable choice for demanding applications.
- Sheave Ø: 80 mm (3 1/8 in)
- Length: 114 mm (4 1/2 in)
- Height: 65 mm (2 9/16 in)
- Weight: 580 g (20.3 oz)
- Maximum line Ø: 16 mm (5/8 in)
- Maximum working load: 1450 kg (3197 lb)
- Breaking load: 2900 kg (6394 lb)
- Fasteners: 10 mm
- A dimension: 19.5 mm (3/4 in)
- B dimension: 61 mm (2 13/32 in)
- C dimension: 80 mm (3 1/8 in)
- D dimension: 19.8 mm (25/32 in)
- Item number: HK6298
-
