ID
1299347
$ 210.71
1-2 weeks delivery time
-
+
The Harken 6294 Element Footblock has forged aluminum sideplates with compound curves for strength and corrosion resistance, a composite bearing sheave supported by a journal bearing, and compact dimensions that support larger line diameters for versatile rigging use.
- Description
- Ask a Question
-

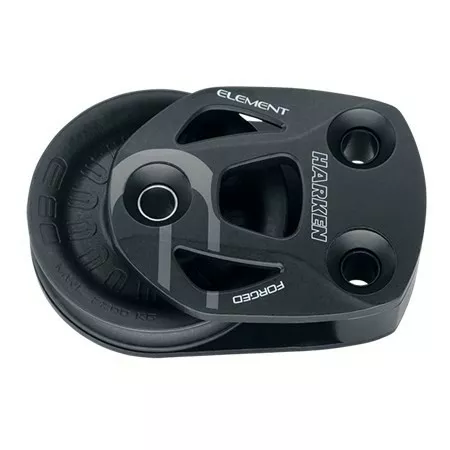

Harken 6294 - 80mm Aluminum Element Footblock
The Harken 6294 Element Footblock is designed with the same forged aluminum sideplates and compound curves for strength and corrosion resistance. It features a tough composite bearing sheave and a proven journal bearing for long service life. This compact footblock supports larger line diameters and includes detailed fastener and dimension specifications, making it a versatile and durable choice for various rigging applications.
- Sheave Ø: 80 mm (3 1/8 in)
- Length: 114 mm (4 1/2 in)
- Height: 36 mm (1 7/16 in)
- Weight: 310 g (10.9 oz)
- Maximum line Ø: 16 mm (5/8 in)
- Maximum working load: 2200 kg (4850 lb)
- Breaking load: 4400 kg (9700 lb)
- Fasteners: 10 mm
- A: 19.5 mm (3/4 in)
- B: 61 mm (2 13/32 in)
- C: 80 mm (3 1/8 in)
- D: 19.8 mm (25/32 in)
- Item number: HK6294
-
