Harken 60.2STEP24H - 60 Electric Self-Tailing Performa™ Winch 2 Speed, 24V, Horizontal 60.2STE Black

ID 1299913

$ 13,133.28

1-2 weeks delivery time

- +

Add to cart

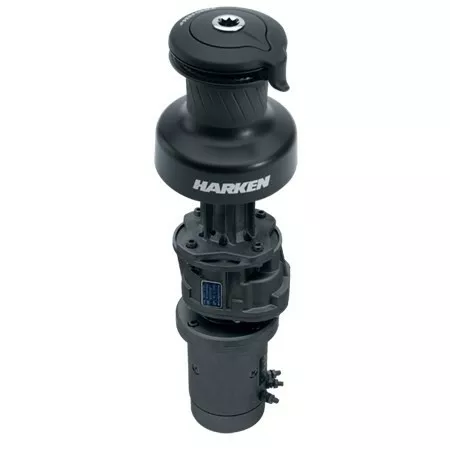

The Harken 60.2STEP24H is an electric self-tailing winch engineered for high-efficiency sail trimming. It features a sandblasted drum optimized for small-diameter, high-tech lines and offers effortless sail handling with the push of a button. This winch is designed for horizontal mounting and operates on a 24V system, providing a balance of power and control with a weight of 10.2 kg and a maximum line diameter of 16 mm.

Description
Ask a Question

Harken 60.2STEP24H - 60 Electric Self-Tailing Performa™ Winch 2 Speed, 24V, Horizontal 60.2STE Black

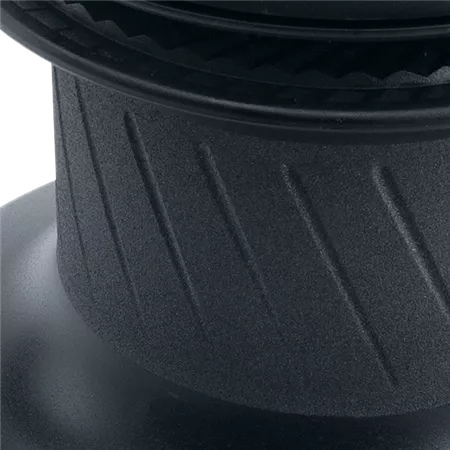

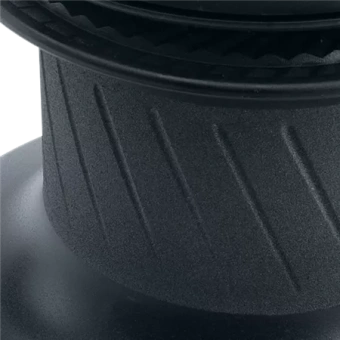

The Harken 60.2STEP24H Electric Performa™ winch is engineered for high-efficiency trimming of sails, featuring sandblasted drums optimized for halyard and sheeting applications using small-diameter, high-tech lines. With the push of a button, this electric winch provides effortless sail handling, making any trim task easier and faster.
- Item number: HKW60.2STEP24H
- Weight: 10.2 kg / 22.5 lb
- Maximum line diameter: 16 mm / 5/8 in
- Minimum line diameter: 8 mm / 5/16 in
- Fasteners: M8 SH mm / 5/16 SH in
- Fastener circle: 204 mm / 8 in
- Number of fasteners: 6
- Height: 246 mm / 9 11/16 in
- E dimension: 69 mm / 2 3/4 in
- F dimension: 181 mm / 7 1/8 in
- Configuration: Self-tailing
- Speed: 2
- Drum diameter: 120 mm / 4 3/4 in
- Base diameter: 236 mm / 9 5/16 in
- Weight of winch and motor: 21 kg / 46.4 lb
- Motor weight: 10.8 kg / 23.9 lb
- Line entry height: 116 mm / 4 9/16 in
- Gear ratio: 4.8 / 14.4
- Power ratio: 20.3 / 61
- Racing disconnect rod: B60PDR
- G dimension: 244 mm / 9 5/8 in
