ID
1299879
$ 6,856.24
1-2 weeks delivery time
-
+
The Harken 46.2STHA Hydraulic Self-Tailing Radial Aluminum Winch combines hydraulic power with precision engineering, featuring composite roller bearings that minimize friction and stainless steel load-bearing parts for durability. This vertical, two-speed aluminum winch weighs 5.2 kg (winch only) and 12.7 kg combined with motor, offering smooth and efficient trimming with gear ratios of 2.30 and 9.17. It includes hydraulic dimensions L and N, and is designed for reliable, powerful sail handling under demanding conditions.
- Description
- Ask a Question
-

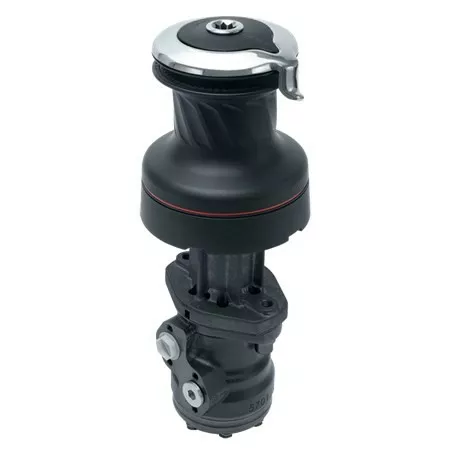

Harken 46.2STHA - Hydraulic Self-Tailing Radial Aluminum Winch 2 Speed, Vertical 46.2STH Black

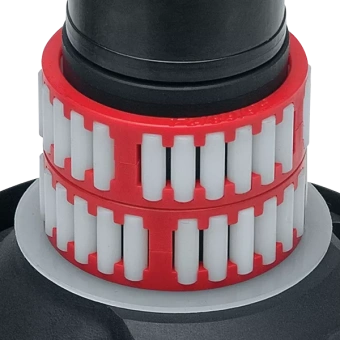

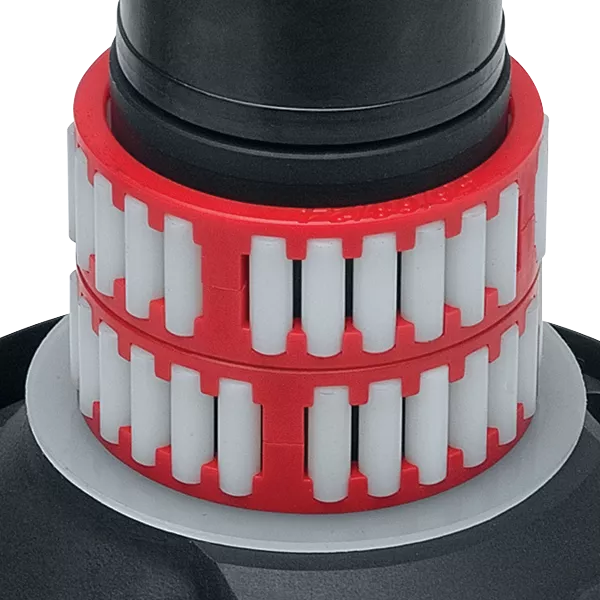

The Harken 46.2STHA Hydraulic Self-Tailing Radial Winch combines effortless hydraulic power with precision engineering. Its composite roller bearings minimize friction and require no lubrication, while stainless steel load-bearing components deliver lasting strength under demanding sailing conditions. Designed for reliable, powerful trimming with a smooth, efficient feel.
- Item number: HKW46.2STHA
- Configuration: Self-tailing
- Speed: 2
- Material: Aluminum
- Available power: Hydraulic
- Weight (kg): 5.2 kg
- Weight (lb): 11.5 lb
- Weight of Winch and Motor (kg): 12.7 kg
- Weight of Winch and Motor (lb): 28 lb
- Motor weight (kg): 7.5 kg
- Motor weight (lb): 16.5 lb
- Maximum line Ø (mm): 14 mm
- Maximum line Ø (in): 9/16 in
- Minimum line Ø (mm): 8 mm
- Minimum line Ø (in): 5/16 in
- Drum Ø (mm): 100 mm
- Drum Ø (in): 3 7/8 in
- Base Ø (mm): 184 mm
- Base Ø (in): 7 1/4 in
- Height (mm): 201 mm
- Height (in): 7 15/16 in
- Fasteners (mm): M8 SH mm
- Fasteners (in): 5/16 SH in
- Fastener circle (mm): 150 mm
- Fastener circle (in): 5 7/8 in
- Number of fasteners: 5
- Line entry height (mm): 90 mm
- Line entry height (in): 3 9/16 in
- Gear ratio - 1: 2.30
- Gear ratio - 2: 9.17
- Power ratio - 1: 11.70
- Power ratio - 2: 46.50
- Hydraulic L (mm): 234 mm
- Hydraulic L (in): 9.25 in
- Hydraulic N (mm): 130 mm
- Hydraulic N (in): 5 1/8 in
-
