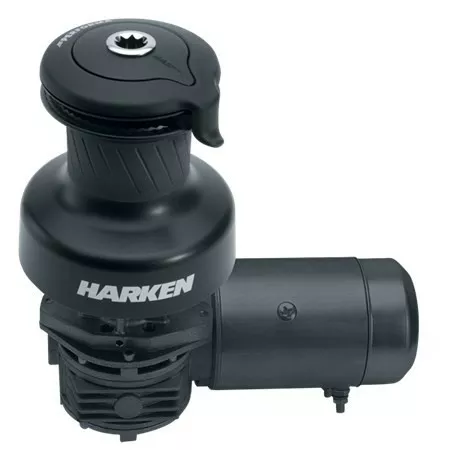

The Harken 46.2STEP12H Electric Self-Tailing Performa™ Winch is designed for efficient handling of halyard and sheeting tasks using small-diameter, high-tech lines. It features a 12V electric motor for effortless sail trimming at the push of a button, with a two-speed configuration, a self-tailing setup, and a drum diameter of 100 mm. It weighs 5.2 kg, with the winch and motor together weighing 14.9 kg, and includes specifications such as gear ratios of 2.30 and 9.17 and a racing disconnect rod B46PDR.
- Description
- Ask a Question
-
Harken 46.2STEP12H - Electric Self-Tailing Performa™ Winch 2 Speed, 12V, Horizontal 46.2STE Black
The Harken 46.2STEP12H Electric Self-Tailing Performa™ Winch is designed to handle halyard and sheeting applications efficiently, accommodating small-diameter, high-tech lines. With an electric motor, it allows effortless sail trimming at the push of a button.
- Item number: HKW46.2STEP12H
- Weight: 5.2 kg / 11.5 lb
- Maximum line diameter: 14 mm / 9/16 in
- Minimum line diameter: 8 mm / 5/16 in
- Fasteners: M8 SH mm / 5/16 SH in, number of fasteners: 5
- Fastener circle: 150 mm / 5 7/8 in
- Height: 202 mm / 7 15/16 in
- E: 43 mm / 1 3/4 in
- F: 155 mm / 6 1/8 in
- Configuration: Self-tailing
- Speed: 2
- Drum diameter: 100 mm / 3 15/16 in
- Base diameter: 184 mm / 7 1/4 in
- Weight of winch and motor: 14.9 kg / 32.8 lb
- Motor weight: 9.7 kg / 21.3 lb
- Line entry height: 90 mm / 3 9/16 in
- Gear ratios: 2.30 (first), 9.17 (second)
- Power ratios: 11.70 (first), 46.50 (second)
- Racing disconnect rod: B46PDR
- G: 227 mm / 8 7/8 in
-
