ID
1395236
$ 346.13
1-2 weeks delivery time
Item:
- Black Plain Top
- White Plain Top
- White Winch Handle Socket
Clamcleat DH6 inspection access covers provide a 150 mm internal opening with a sealed, low-profile deck installation. Manufactured from ASA polymer with an EPDM UV-resistant O-ring seal, the covers are designed for resistance to UV exposure, heat, moisture and acetone. All versions have a 206 mm overall diameter, 165 mm cut-out diameter and six 4 mm fixing slots. Available as a black plain-top cover, white plain-top cover, or white cover with winch-handle socket.
- Description
- Ask a Question
-
Clamcleat DH6 150 mm Inspection Access Covers with Seal, Black or White, Plain Top or Winch Handle Socket

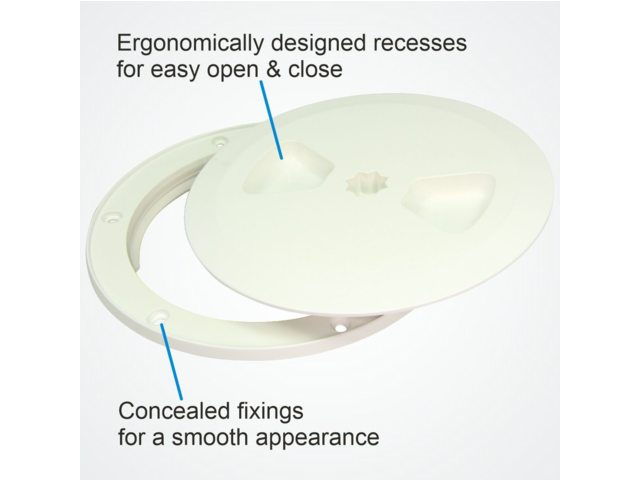

Clamcleat DH6 is a 150 mm (6") inspection access cover designed to provide convenient access through decks, panels and other marine surfaces while maintaining a secure sealed installation.
The cover and deck ring are manufactured from ASA polymer, providing resistance to UV exposure, heat and moisture. An EPDM UV-resistant O-ring seal and ribbed deck-ring design help provide a watertight fit.
The DH6 has an internal opening diameter of 150 mm, a required cut-out diameter of 165 mm and an overall outside diameter of 206 mm. Six 4 mm fixing slots are positioned on a pitch circle diameter of approximately 182.5–185.5 mm.
The range is available in three configurations: DH6NB in black with a plain top, DH6NW in white with a plain top, and DH6W in white with an integrated winch-handle socket for opening. A black version with winch-handle socket is not available.
Product Features
- Brand: Clamcleat
- Series: DH6
- Product type: Inspection access cover with seal
- Internal opening diameter: 150 mm
- Material: ASA polymer
- Seal: EPDM UV-resistant O-ring
- Ribbed deck ring for improved sealing
- UV, heat and moisture resistant construction
- Acetone resistant
- Six 4 mm fixing slots
- Suitable for No. 8 fixings
- Plain-top and winch-handle opening versions available
- Available in black or white depending on version
Technical Specifications
Parameter Specification Internal Diameter 150 mm Cut-Out Diameter 165 mm Overall Diameter 206 mm Height 12 mm Material ASA Polymer Seal EPDM UV-Resistant O-Ring PCD 182.5–185.5 mm Fixing Holes / Slots 6 × 4 mm Fixing Size No. 8 Weight Approx. 280 g
Available Variants
Model Article Number Colour Top / Opening Type Internal Diameter DH6NB 17801050 Black Plain top, hand opening 150 mm DH6NW 17801051 White Plain top, hand opening 150 mm DH6W 17801052 White Winch handle socket 150 mm -
