ID
1395130
$ 0.92
1-2 weeks delivery time
Color:
- Black
- White
Clamcleat CL212BP and CL212BP-B are nylon backplates designed to reinforce cleat installations on sailcloth, fabric, canvas and webbing. They spread the mounting load and help prevent rivets from pulling through flexible materials. The white CL212BP is intended for white and silver cleats, while the black CL212BP-B is matched to black and hard-anodised cleats. Both versions measure 70 × 21 × 3 mm with 49 mm hole centres and weigh approximately 2 g.
- Description
- Ask a Question
-

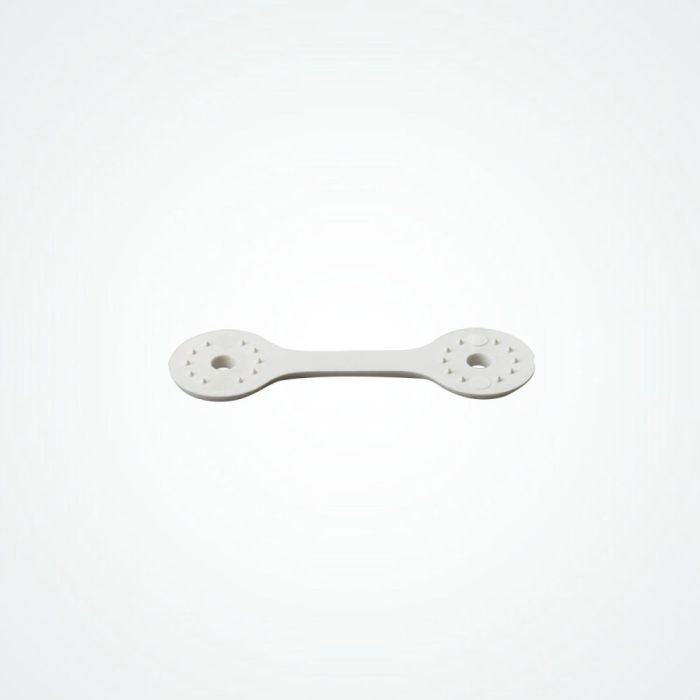

Clamcleat CL212BP / CL212BP-B Nylon Backplates for Sail & Fabric Cleats, White or Black
Clamcleat CL212BP and CL212BP-B are nylon backplates designed to reinforce cleat installations on sailcloth, fabric, canvas and webbing.
The backplate is positioned behind the mounting surface to spread the load over a wider area and help prevent rivets from pulling through thin or flexible materials. It can also be used when a cleat is sewn onto fabric.
The CL212BP is the white version and is intended for compatible white and silver cleats. The CL212BP-B is the black version for black and hard-anodised cleats.
For carbon fibre sails, alloy cleats should be sewn rather than riveted to help avoid corrosion of alloy rivets.
Product Features
- Brand: Clamcleat
- Models: CL212BP and CL212BP-B
- Product type: Cleat backplate
- Material: Nylon
- Available colours: White and Black
- Spreads mounting load across sailcloth or fabric
- Helps prevent rivet pull-through
- Suitable for riveted installations
- Suitable for sewn installations
- Suitable for sailcloth, fabric, canvas and webbing
- White version for white and silver cleats
- Black version for black and hard-anodised cleats
Technical Specifications
Parameter Specification Material Nylon Hole Centres 49 mm Length 70 mm Width 21 mm Height 3 mm Weight Approx. 2 g
Available Variants
Model Colour Compatible Cleats CL212BP White CL212, CL214W, CL241, CL258, CL259, CL273, CL281W, CL283W CL212BP-B Black CL213, CL214, CL241AN, CL258AN, CL259AN, CL273AN, CL281, CL283
Installation Note
When fitting alloy cleats to carbon fibre sails, sew the cleat to the sail rather than using alloy rivets, as the rivets may corrode.
-
