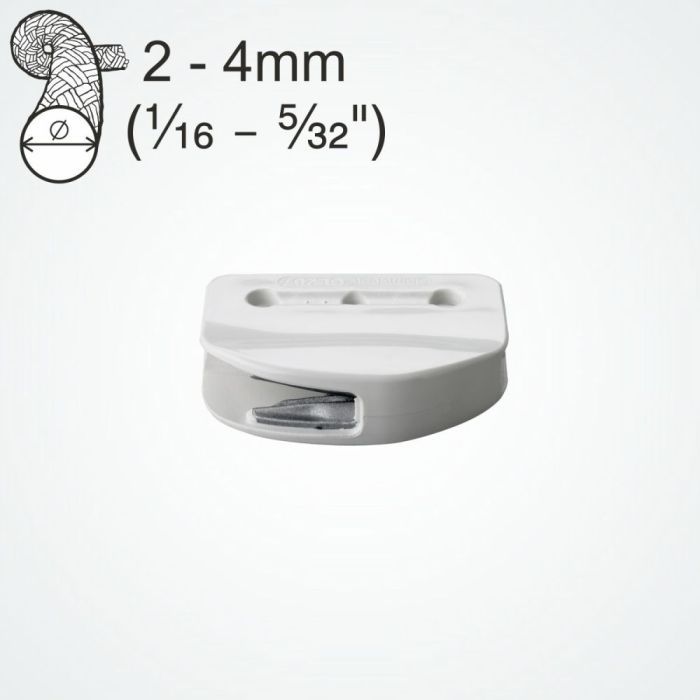

Clamcleat CL267 Racing Sail Edge Cleats for 1–4 mm Rope

ID 1395142

$ 11.83

1-2 weeks delivery time

Item:

Standard
Rivets

Clamcleat CL267 Racing Sail Edge cleats combine a strong aluminium cleat with a low-profile nylon casing for precise leech and luff line tensioning. Designed for 1–4 mm (3/64–5/32") rope, the semi-flexible casing fits along the edge of a sail and allows adjustment from either side. The range includes the standard CL267 and the CL267+R version supplied with rivets for installation.

Description
Ask a Question

Clamcleat CL267 Racing Sail Edge Cleats for 1–4 mm Rope, Aluminium Cleat with Nylon Case, Standard or with Rivets

Clamcleat CL267 Racing Sail Edge Cleat is designed for tensioning sail leech and luff lines using ropes from 1 to 4 mm (3/64–5/32").

The cleat combines a strong aluminium rope-gripping section with a low-profile nylon casing. Its semi-flexible sides allow the assembly to conform to the edge of the sail, providing a neat and impact-resistant installation.

The CL267 can be adjusted from either side of the sail and can be fixed by sewing or riveting, depending on the installation requirements.

The range includes the standard CL267 cleat and the CL267+R version supplied with rivets for convenient installation.

Product Features

Brand: Clamcleat
Series: Racing Sail Edge Cleat
Models: CL267 and CL267+R
Product type: Sail edge rope cleat
Material: Aluminium & Nylon
Rope diameter: 1–4 mm (3/64–5/32")
Strong aluminium cleat for higher loads
Low-profile nylon casing
Semi-flexible sides for fitting along the sail edge
Suitable for leech line tensioning
Suitable for luff line tensioning
Adjustable from either side of the sail
Can be sewn or riveted into position
Strong and impact-resistant construction
CL267+R supplied with rivets

Technical Specifications

Parameter	Specification
Rope Diameter	1–4 mm (3/64–5/32")
Material	Aluminium & Nylon
Hole Centres	30 mm
Length	50 mm
Width	14 mm
Height	36 mm
Rivet Size	3.9 mm
Weight	Approx. 12 g

Available Variants

Model	Configuration	Rope Diameter
CL267	Racing Sail Edge Cleat	1–4 mm
CL267+R	Racing Sail Edge Cleat + Rivets	1–4 mm
