ID
1360798
$ 66.95
1-2 weeks delivery time
-
+
The Barton N01311 is a Size 1 triple fixed eye block with becket and three 30 mm plain bearing sheaves, designed for ropes up to 8 mm. Weighing 94 g, it provides reliable load handling with a working load of 355 kg and break load of 710 kg, making it ideal for multi-purchase systems with rope termination.
- Description
- Ask a Question
-

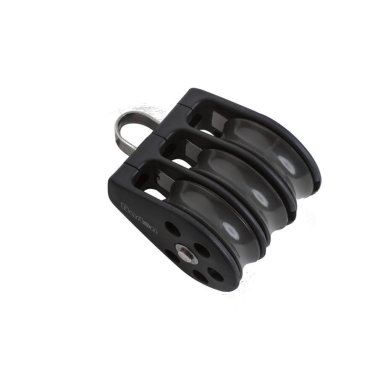

Barton N01311 - Triple Fixed Eye Block with Becket Size 1 30mm – Plain Bearing, 3x Ø30mm Sheaves, Max Rope 8mm
The Barton N01311 Triple Fixed Eye Block with Becket is part of the Size 1 (30 mm) range, featuring three plain bearing sheaves and an internal steel frame for enhanced strength and durability. The integrated becket allows secure rope termination in compact multi-purchase systems.
The fixed eye attachment ensures stable and secure mounting, while the plain bearing system is optimized for high load capacity and controlled adjustment. This block is suitable for dinghies, dayboats, and a wide range of sailing applications requiring dependable performance :contentReference[oaicite:0]{index=0}.
Key Features
- Triple sheave block with integrated becket
- Internal steel frame for increased strength and durability
- Plain bearing system for high load applications
- Becket for rope termination in purchase systems
- Fixed eye for secure mounting
- Robust construction – 94 g
Technical Specifications
Part Number N01311 Block Type Triple Fixed Eye + Becket Size Size 1 (30 mm) Sheave Diameter 3 × 30 mm x 12 mm (1 3/16"" x 15/32"") Bearing Type Plain Bearing Number of Sheaves Triple Max Rope Diameter 8 mm (5/16"") Safe Working Load (SWL) 355 kg (782 lbs) Break Load 710 kg (1565 lbs) Weight 94 g Dimensions 70 × 56 × 32 mm
Applications
- Multi-purchase systems with rope termination
- Control and trimming systems
- Fixed rigging installations
- Dinghies and small to medium sailing boats
The Barton Size 1 plain bearing triple blocks with becket are engineered for strength, durability, and efficient load handling, delivering reliable performance in compact sailing systems.
-
