ID
1360864
$ 89.28
1-2 weeks delivery time
-
+
The Barton N15210 is a Size 5 double fixed eye block with two 54 mm ball bearing sheaves, designed for ropes up to 12 mm. Weighing 223 g, it delivers smooth low-friction performance with a safe working load of 750 kg and break load of 1500 kg, making it ideal for dynamic multi-purchase systems on cruising and racing yachts.
- Description
- Ask a Question
-

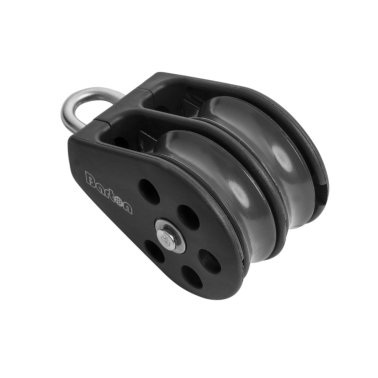

Barton N15210 – Double Fixed Eye Block Size 5 54mm, Ball Bearing, 2x Ø54mm Sheaves, Max Rope 12mm
The Barton N15210 Double Fixed Eye Block is part of the heavy-duty Size 5 (54 mm) range, engineered for high-performance sailing applications. Featuring two ball bearing sheaves, this block ensures smooth, low-friction operation, ideal for systems requiring frequent adjustment and efficient load handling.
The fixed eye attachment provides a stable and secure mounting point, making it suitable for structured rigging setups. Constructed with marine-grade 316 stainless steel load components and reinforced moulded side plates, the block is through-bolted and riveted for maximum strength and durability.
Key Features
- Double sheave block with fixed eye attachment
- Ball bearing system for smooth, low-friction performance
- Designed for dynamic multi-purchase systems
- Stable and secure mounting configuration
- Heavy-duty construction with stainless steel internal frame
- Through-bolted and riveted side plates for superior strength
- Optimized for efficient load distribution
- Weight – 223 g
Technical Specifications
Part Number N15210 Block Type Double Fixed Eye Size Size 5 (54 mm) Sheave Diameter 2 × 54 mm x 17 mm (2 1/8" x 5/8") Bearing Type Ball Bearing Number of Sheaves Double Max Rope Diameter 12 mm (7/16") Safe Working Load (SWL) 750 kg (1650 lbs) Break Load 1500 kg (3300 lbs) Max Rolling Load 525 kg (1157 lbs) Weight 223 g Dimensions 108 × 59 × 58 mm
Applications
- Multi-purchase systems
- Mainsheet and traveller systems
- Dynamic control and trimming setups
- Cruising and racing yachts
- High-efficiency load handling systems
The Barton Size 5 ball bearing double blocks are engineered for high efficiency and smooth operation, delivering reliable performance in demanding marine environments where low friction and precise control are essential. :contentReference[oaicite:0]{index=0}
-
