ID
1360737
$ 70.54
1-2 weeks delivery time
-
+
The Barton N05211 is a Size 5 double fixed eye block with becket and two 54 mm plain bearing sheaves, designed for ropes up to 12 mm. Weighing 274 g, it is optimized for high static loads with a safe working load of 750 kg and break load of 1500 kg, making it ideal for heavy-duty multi-purchase systems with fixed rope termination.
- Description
- Ask a Question
-

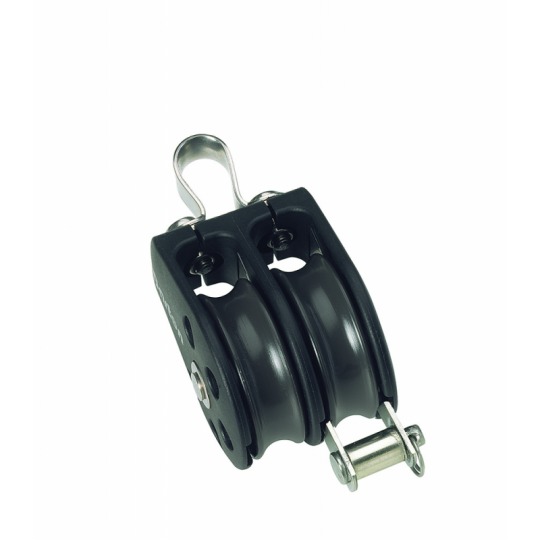

Barton N05211 – Double Fixed Eye Block with Becket Size 5 54mm, Plain Bearing, 2x Ø54mm Sheaves, Max Rope 12mm
The Barton N05211 Double Fixed Eye Block with Becket is part of the heavy-duty Size 5 (54 mm) range, engineered for strength and reliability in demanding marine environments. Featuring two plain bearing sheaves, this block is optimized for high static load applications and consistent performance under sustained load.
The fixed eye attachment ensures secure and stable mounting, while the integrated becket provides a reliable point for rope termination in multi-purchase systems. Constructed with marine-grade 316 stainless steel load components and reinforced moulded side plates, the block is through-bolted and riveted for maximum durability.
Key Features
- Double sheave block with fixed eye and integrated becket
- Plain bearing system optimized for high-load applications
- Designed for multi-purchase systems
- Secure and stable mounting configuration
- Integrated becket for rope termination
- Heavy-duty construction with stainless steel internal frame
- Through-bolted and riveted side plates for superior strength
- Weight – 274 g
Technical Specifications
Part Number N05211 Block Type Double Fixed Eye + Becket Size Size 5 (54 mm) Sheave Diameter 2 × 54 mm x 17 mm (2 1/8" x 5/8") Bearing Type Plain Bearing Number of Sheaves Double Max Rope Diameter 12 mm (7/16") Safe Working Load (SWL) 750 kg (1650 lbs) Break Load 1500 kg (3300 lbs) Weight 274 g Dimensions 131 × 59 × 58 mm
Applications
- Multi-purchase systems with rope termination
- Mainsheet and traveller systems
- Heavy-duty control line setups
- Cruising and racing yachts
- Static load rigging applications
The Barton Size 5 plain bearing double blocks with becket are engineered for maximum strength and durability, delivering dependable performance in high-load marine applications where reliability and secure load handling are essential. :contentReference[oaicite:0]{index=0}
-
