The Barton N05220 is a Size 5 double reverse shackle block with two 54 mm plain bearing sheaves, designed for ropes up to 12 mm. Weighing 270 g, it is optimized for high static loads with a safe working load of 750 kg and break load of 1500 kg, making it ideal for heavy-duty multi-purchase systems requiring flexible angled attachment.
- Description
- Ask a Question
-

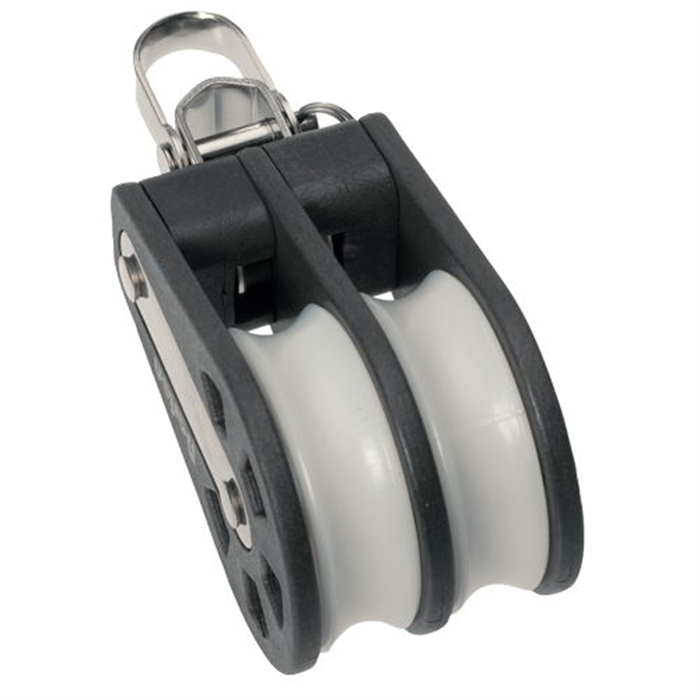

Barton N05220 – Double Reverse Shackle Block Size 5 54mm, Plain Bearing, 2x Ø54mm Sheaves, Max Rope 12mm
The Barton N05220 Double Reverse Shackle Block is part of the heavy-duty Size 5 (54 mm) range, engineered for strength and durability in demanding marine environments. Featuring two plain bearing sheaves, this block is optimized for high static load applications and reliable performance under sustained load.
The reverse shackle configuration allows flexible mounting at various angles, ensuring optimal alignment in complex rigging systems. Constructed with marine-grade 316 stainless steel load components and reinforced moulded side plates, the block is through-bolted and riveted for maximum strength and long service life.
Key Features
- Double sheave block with reverse shackle attachment
- Plain bearing system optimized for high-load applications
- Flexible angled mounting capability
- Designed for multi-purchase systems
- Heavy-duty construction with stainless steel internal frame
- Through-bolted and riveted side plates for superior strength
- Reliable performance under sustained load
- Weight – 270 g
Technical Specifications
Part Number N05220 Block Type Double Reverse Shackle Size Size 5 (54 mm) Sheave Diameter 2 × 54 mm x 17 mm (2 1/8" x 5/8") Bearing Type Plain Bearing Number of Sheaves Double Max Rope Diameter 12 mm (7/16") Safe Working Load (SWL) 750 kg (1650 lbs) Break Load 1500 kg (3300 lbs) Weight 270 g Dimensions 124 × 59 × 58 mm
Applications
- Multi-purchase systems
- Mainsheet and traveller systems
- Heavy-duty control line setups
- Cruising and racing yachts
- Rigging requiring flexible angled attachment
The Barton Size 5 plain bearing double blocks are engineered for maximum strength and durability, providing dependable performance in high-load marine applications where reliability and secure load handling are essential. :contentReference[oaicite:0]{index=0}
-
