The Barton N03091 is a Size 3 single block with double tang and integrated becket, featuring a 45 mm plain bearing sheave for ropes up to 10 mm. Weighing 86 g, it is designed for compact multi-purchase systems requiring secure rope termination. With a safe working load of 400 kg and break load of 800 kg, it delivers reliable performance in mainsheet, vang, and control line applications.
- Description
- Ask a Question
-

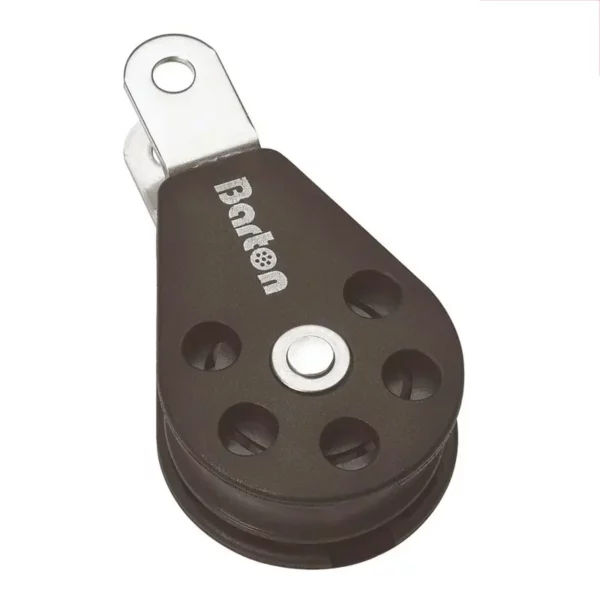

Barton N03091 - Single Double Tang Block with Becket Size 3 45mm – Plain Bearing, Ø45mm Sheave, Max Rope 10mm
The Barton N03091 Single Double Tang Block with Becket is part of the Size 3 (45 mm) range and features a plain bearing sheave designed for dependable load handling. The integrated becket allows secure rope termination, making it ideal for compact and efficient multi-purchase systems.
The double tang attachment provides a strong and stable connection, suitable for a variety of rigging configurations. The Size 3 range incorporates modern construction with stainless steel frames and advanced materials, including glass fibre reinforced nylon cheeks and acetal sheaves, ensuring high strength while maintaining low weight. The plain bearing system is particularly suited for higher static loads and consistent operation.
Key Features
- Single sheave block with double tang attachment and becket
- Plain bearing sheave for reliable load handling
- Integrated becket for secure rope termination
- High-strength construction with stainless steel frame
- Lightweight and compact design
Technical Specifications
Part Number N03091 Block Type Single Double Tang Block with Becket Size Size 3 (45 mm) Sheave Diameter 45 mm x 13 mm (1 3/4" x 33/64") Bearing Type Plain Bearing Number of Sheaves Single Max Rope Diameter 10 mm (3/8") Safe Working Load (SWL) 400 kg (880 lbs) Break Load 800 kg (1760 lbs) Weight 86 g Dimensions 103 × 47 × 28 mm Materials Glass fibre reinforced nylon cheeks, acetal sheave, 316 stainless steel fittings, brass plain bearing
Applications
- Mainsheet systems
- Vang and kicker systems
- Multi-purchase systems requiring fixed rope termination
- Dinghies, dayboats and small cruising yachts
The Barton N03091 offers a compact and robust solution for efficient load handling and secure line termination in a wide range of sailing applications.
-
