ID
1360693
$ 25.30
1-2 weeks delivery time
-
+
The Barton N13090 is a Size 3 single block with double tang attachment, featuring a 45 mm ball bearing sheave for ropes up to 10 mm. Weighing 78 g, it is designed for dynamic control systems requiring smooth, low-friction operation. With a safe working load of 400 kg and break load of 800 kg, it is suitable for mainsheet, vang, and trimming applications where frequent adjustment is required.
- Description
- Ask a Question
-

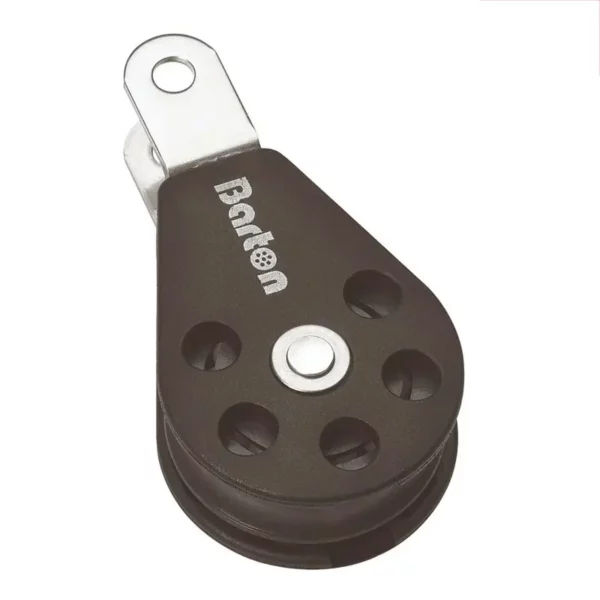

Barton N13090 - Single Double Tang Block Size 3 45mm – Ball Bearing, Ø45mm Sheave, Max Rope 10mm
The Barton N13090 Single Double Tang Block is part of the Size 3 (45 mm) range and features a ball bearing sheave for smooth, low-friction operation in dynamic sailing systems. The double tang attachment provides a secure and stable connection, making it suitable for a wide range of rigging applications.
The Size 3 range incorporates modern construction with stainless steel frames and advanced materials, including glass fibre reinforced nylon cheeks and acetal sheaves. The ball bearing system is ideal for applications requiring frequent adjustment, such as mainsheet and trimming systems, delivering efficient line handling and reduced friction.
Key Features
- Single sheave block with double tang attachment
- Ball bearing system for smooth, low-friction performance
- High-strength construction with stainless steel frame
- Lightweight design for efficient rigging setups
- Designed for dynamic and frequently adjusted systems
Technical Specifications
Part Number N13090 Block Type Single Double Tang Block Size Size 3 (45 mm) Sheave Diameter 45 mm x 13 mm (1 3/4" x 33/64") Bearing Type Ball Bearing Number of Sheaves Single Max Rope Diameter 10 mm (3/8") Safe Working Load (SWL) 400 kg (880 lbs) Break Load 800 kg (1760 lbs) Max Rolling Load 270 kg (595 lbs) Weight 78 g Dimensions 87 × 47 × 28 mm Materials Glass fibre reinforced nylon cheeks, acetal sheave, 316 stainless steel fittings, Delrin ball bearings
Applications
- Mainsheet systems
- Vang and kicker systems
- Lead blocks and trimming systems
- Dinghies, dayboats and small cruising yachts
The Barton N13090 is engineered for high-efficiency dynamic performance, delivering smooth operation and reliable load handling in demanding sailing conditions.
-
