ID
1360695
$ 23.50
1-2 weeks delivery time
-
+

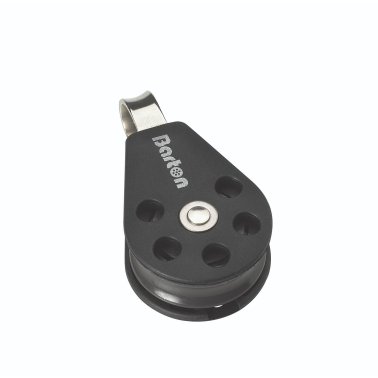

The Barton N13110 is a Size 3 single block with fixed eye attachment, featuring a 45 mm ball bearing sheave for ropes up to 10 mm. Weighing 67 g, it is designed for smooth, low-friction operation in dynamic control systems. With a safe working load of 400 kg and break load of 800 kg, it is ideal for mainsheet, vang, and trimming applications requiring efficient line movement.
- Description
- Ask a Question
-
Barton N13110 - Single Fixed Eye Block Size 3 45mm – Ball Bearing, Ø45mm Sheave, Max Rope 10mm
The Barton N13110 Single Fixed Eye Block is part of the Size 3 (45 mm) range and features a ball bearing sheave for smooth, low-friction performance. The fixed eye attachment provides a secure and stable mounting point, making it suitable for both static and dynamic rigging applications.
The Size 3 range incorporates modern construction with stainless steel frames and advanced materials, including glass fibre reinforced nylon cheeks and acetal sheaves. The ball bearing system is designed for applications requiring frequent adjustment, delivering efficient line handling and reduced friction in demanding sailing conditions.
Key Features
- Single sheave block with fixed eye attachment
- Ball bearing system for smooth, low-friction performance
- Secure and stable mounting for fixed installations
- High-strength construction with stainless steel frame
- Lightweight and compact design
Technical Specifications
Part Number N13110 Block Type Single Fixed Eye Block Size Size 3 (45 mm) Sheave Diameter 45 mm x 13 mm (1 3/4" x 33/64") Bearing Type Ball Bearing Number of Sheaves Single Max Rope Diameter 10 mm (3/8") Safe Working Load (SWL) 400 kg (880 lbs) Break Load 800 kg (1760 lbs) Max Rolling Load 270 kg (595 lbs) Weight 67 g Dimensions 81 × 47 × 28 mm Materials Glass fibre reinforced nylon cheeks, acetal sheave, 316 stainless steel fittings, Delrin ball bearings
Applications
- Mainsheet and trimming systems
- Vang and kicker systems
- Control line and lead systems
- Dinghies, dayboats and small cruising yachts
The Barton N13110 delivers efficient and smooth operation with reliable load handling, making it an excellent choice for dynamic sailing applications where reduced friction is essential.
-
