ID
1360755
$ 302.18
1-2 weeks delivery time
-
+
The Barton N05641 is a Size 5 fiddle block with plain bearing sheaves (38/64 mm), featuring snap shackle, becket and integrated cam cleat for efficient control systems. Designed for ropes up to 12 mm, it combines a compact twin-sheave configuration with a strong stainless steel reinforced frame. With SWL 750 kg and break load 1500 kg, it is suitable for mainsheet and control applications on larger cruising and racing yachts.
- Description
- Ask a Question
-

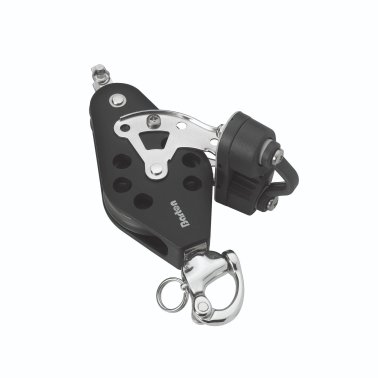

Barton N05641 – Fiddle Block Size 5 Plain Bearing with Snap Shackle, Becket & Cam, 38/64mm Sheaves, Max Rope 12mm, SWL 750kg
The Barton N05641 Fiddle Block is part of the Size 5 (54 mm) block range, engineered for high-performance sail control systems on larger cruising and racing yachts. It features a compact fiddle configuration with twin inline sheaves (38 mm and 64 mm), providing efficient load distribution and versatile rigging options.
Constructed with glass fibre reinforced nylon side plates and an internal 316 stainless steel frame, the block offers excellent strength and durability. The assembly is through-bolted and riveted, ensuring structural integrity under high loads.
This model includes a snap shackle for quick attachment, an integrated becket for additional purchase configurations, and a cam cleat for convenient line control. The plain bearing sheaves provide reliable performance under load with minimal maintenance.
Key Features
- Fiddle block with twin sheaves (38 mm and 64 mm)
- Snap shackle for fast and secure attachment
- Integrated becket for additional purchase systems
- Built-in cam cleat for line control
- Plain bearing sheaves for durability and reliability
- Glass fibre reinforced nylon side plates
- Internal 316 stainless steel frame for strength
- Through-bolted and riveted construction
- Compatible with Barton mainsheet traveller systems
Technical Specifications
Part Number N05641 Product Type Fiddle Block with Snap Shackle, Becket & Cam Size Size 5 (54 mm) Sheave Configuration Fiddle (38 mm / 64 mm) Sheave Size 54 mm × 17 mm (2 1/8" × 5/8") Bearing Type Plain Bearing Max Rope Diameter 12 mm (7/16") Safe Working Load (SWL) 750 kg (1650 lbs) Break Load 1500 kg (3300 lbs) Weight 558 g Dimensions 220 × 115 × 81 mm
Applications
- Mainsheet systems
- Multi-purchase control systems
- Sheet and control line handling
- Cruising and racing yacht rigging
The Barton Size 5 fiddle block range is engineered for strength, versatility and efficient load handling, delivering reliable performance in demanding sailing applications.
-
