ID
1360929
$ 21.38
1-2 weeks delivery time
-
+
The Barton T00181 is a TUPHblox single block with eye and becket, featuring a 20 mm sheave and brass bearing for smooth operation. Designed for ropes up to 8 mm, it is manufactured from Tufnol composite with 316 stainless steel fittings, providing high strength, low weight and excellent wear resistance. With SWL 275 kg and break load 550 kg, it is suitable for marine and industrial applications.
- Description
- Ask a Question
-

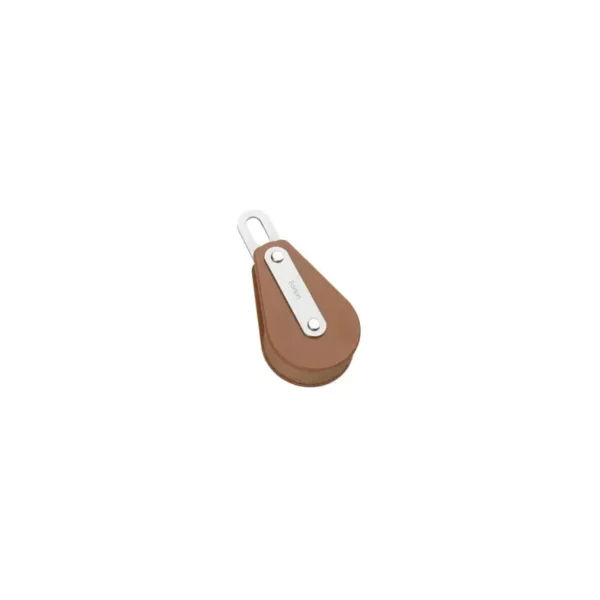

Barton T00181 – TUPHblox Single Block with Eye & Becket 20mm, Brass Bearing, Max Rope 8mm, SWL 275kg
The Barton T00181 TUPHblox Single Block is a compact and durable solution designed for a wide range of marine and industrial applications. It features a 20 mm sheave and a fixed eye with integrated becket, enabling flexible rigging and multi-purchase configurations.
The block is manufactured from Tufnol (phenolic resin laminate with cotton reinforcement), a material known for its exceptional strength, durability and resistance to wear. Combined with 316 marine-grade stainless steel bindings and brass bearings, it delivers smooth operation and long service life even in harsh environments.
TUPHblox blocks are also non-conductive, making them suitable for specialised applications such as industrial environments, aviation, and hazardous areas where electrical conductivity must be avoided.
Key Features
- Single block with fixed eye and integrated becket
- 20 mm sheave with brass bearing for smooth operation
- Tufnol composite construction for strength and durability
- 316 stainless steel components for corrosion resistance
- Non-conductive material suitable for specialised environments
- High resistance to UV, weather and wear
- Lightweight and compact design
Technical Specifications
Part Number T00181 Product Type Single Block with Eye & Becket Sheave Diameter 20 mm (25/32") Bearing Type Brass Bearing Max Rope Diameter 8 mm (5/16") Safe Working Load (SWL) 275 kg (606 lbs) Break Load 550 kg (1210 lbs) Material Tufnol composite with 316 stainless steel fittings Number of Sheaves Single
Applications
- General sailing rigging systems
- Control lines and light purchase systems
- Industrial and non-conductive applications
- Aviation and hazardous environment use
The Barton TUPHblox range is engineered for high strength, durability and smooth performance, offering a reliable solution for both marine and specialised technical applications.
-
