ID
1360930
$ 28.53
1-2 weeks delivery time
-
+
The Barton T00210 is a TUPHblox double block with bow, featuring twin 20 mm sheaves and brass bearings for smooth operation. Designed for ropes up to 8 mm, it is manufactured from durable Tufnol composite with 316 stainless steel fittings, offering high strength, low weight and excellent wear resistance. With SWL 275 kg and break load 550 kg, it is suitable for marine, industrial and heritage applications.
- Description
- Ask a Question
-

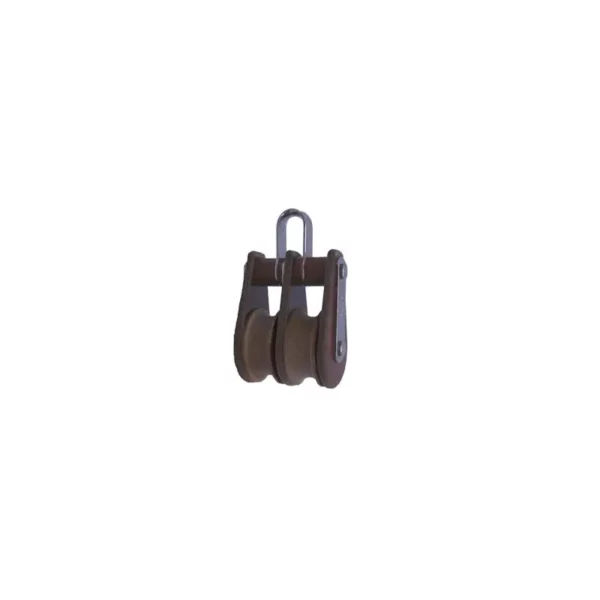

Barton T00210 – TUPHblox Double Block with Bow 20mm, Brass Bearings, Max Rope 8mm, SWL 275kg
The Barton T00210 TUPHblox Double Block is a compact and durable pulley solution featuring twin 20 mm sheaves in a double configuration. Designed with a bow attachment, it can be used with either rope or a shackle, providing flexibility across a wide range of rigging setups.
Constructed from Tufnol (phenolic resin laminate with cotton reinforcement), the block delivers exceptional strength, durability and resistance to wear. The structure is reinforced with 316 marine-grade stainless steel components and fitted with brass bearings, ensuring smooth, reliable operation under load.
The TUPHblox range is known for its non-conductive properties, making it suitable not only for marine environments but also for specialised industrial applications, including hazardous and explosive environments. Its resistance to UV, moisture and environmental exposure ensures long service life.
Key Features
- Double block with twin 20 mm sheaves
- Bow attachment for rope or shackle connection
- Brass bearings for smooth and consistent operation
- Tufnol composite construction for strength and durability
- 316 stainless steel components for corrosion resistance
- Non-conductive material for specialised applications
- High resistance to UV, weather and wear
- Lightweight yet strong construction
Technical Specifications
Part Number T00210 Product Type Double Block with Bow Sheave Diameter 20 mm (25/32") Number of Sheaves Double Bearing Type Brass Bearing Max Rope Diameter 8 mm (5/16") Safe Working Load (SWL) 275 kg (606 lbs) Break Load 550 kg (1210 lbs) Material Tufnol composite with 316 stainless steel fittings
Applications
- Multi-purchase rigging systems
- Control lines and light lifting systems
- Marine and yacht rigging applications
- Industrial and non-conductive environments
- Classic and heritage vessel equipment
The Barton TUPHblox range is engineered for durability, smooth performance and versatility, offering a reliable solution for both marine and specialised technical applications.
-
