ID
1360733
$ 174.89
1-2 weeks delivery time
-
+
The Barton N05140 is a Size 5 single snap shackle block with a 54 mm plain bearing sheave, designed for ropes up to 12 mm. Weighing 254 g, it is optimized for high static loads with a safe working load of 750 kg and break load of 1500 kg, making it ideal for heavy-duty rigging systems requiring quick-release attachment.
- Description
- Ask a Question
-

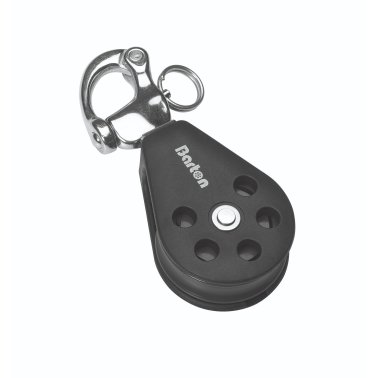

Barton N05140 – Single Snap Shackle Block Size 5 54mm, Plain Bearing, Ø54mm Sheave, Max Rope 12mm
The Barton N05140 Single Snap Shackle Block is part of the heavy-duty Size 5 (54 mm) range, designed for strength and reliability in demanding marine environments. Featuring a plain bearing sheave, this block is optimized for high static load applications, ensuring durability under sustained loads.
The integrated snap shackle attachment allows quick and secure connection or release, making it ideal for applications where fast handling is required. Constructed with marine-grade 316 stainless steel load components and reinforced moulded side plates, the block is through-bolted and riveted for maximum strength and long service life.
Key Features
- Single sheave block with snap shackle attachment
- Plain bearing optimized for high-load, static applications
- Quick-release snap shackle for fast handling
- Heavy-duty construction with stainless steel internal frame
- Through-bolted and riveted side plates for superior strength
- Designed for demanding marine environments
- Compatible with mainsheet traveller systems
- Weight – 254 g
Technical Specifications
Part Number N05140 Block Type Single Snap Shackle Size Size 5 (54 mm) Sheave Diameter 54 mm x 17 mm (2 1/8" x 5/8") Bearing Type Plain Bearing Number of Sheaves Single Max Rope Diameter 12 mm (7/16") Safe Working Load (SWL) 750 kg (1650 lbs) Break Load 1500 kg (3300 lbs) Weight 254 g Dimensions 142 × 58 × 37 mm
Applications
- Mainsheet and traveller systems
- Control line setups requiring quick release
- Static load rigging systems
- Cruising and racing yachts
- Applications where fast connection and disconnection is required
The Barton Size 5 plain bearing blocks are engineered for maximum strength and durability, providing dependable performance in heavy-duty marine applications where reliability and ease of handling are critical. :contentReference[oaicite:0]{index=0}
-
