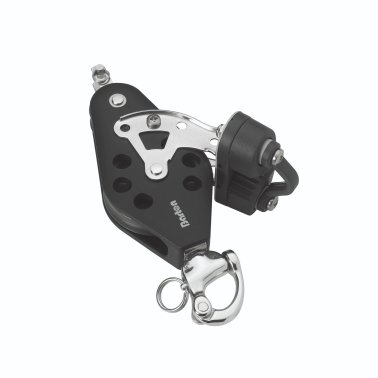

Barton N03641 - Fiddle Block Snap Shackle with Becket and Cam Size 3 30/58mm – Plain Bearing, Ø30/58mm Sheaves, Max Rope 10mm

ID 1360722

$ 209.51

1-2 weeks delivery time

- +

Add to cart

The Barton N03641 is a Size 3 fiddle block with snap shackle, becket, and cam cleat, featuring plain bearing sheaves (30/58 mm) for ropes up to 10 mm. Weighing 270 g, it is designed for high static loads with a safe working load of 400 kg and break load of 800 kg. The snap shackle allows quick attachment, while the becket and cam cleat provide secure rope termination and precise line control, making it ideal for compact control systems.

Description
Ask a Question

Barton N03641 - Fiddle Block Snap Shackle with Becket and Cam Size 3 30/58mm – Plain Bearing, Ø30/58mm Sheaves, Max Rope 10mm

The Barton N03641 Fiddle Block with Snap Shackle, Becket and Cam is part of the Size 3 (45 mm) block range, designed for strength and efficient load handling. It features a plain bearing fiddle sheave configuration (30/58 mm), optimized for higher static load applications.

Manufactured using 30% glass fibre reinforced nylon side plates and an internal stainless steel frame, this block ensures durability and structural strength. The snap shackle attachment enables fast connection and release, while the integrated becket allows rope termination and the cam cleat provides quick and secure line locking for precise control.

Key Features

Fiddle block with snap shackle, becket, and integrated cam cleat
Plain bearing sheaves for high load applications
Snap shackle for quick attachment and release
Cam cleat for fast and secure line control
Heavy-duty construction – 270 g

Technical Specifications

Part Number	N03641
Block Type	Fiddle Snap Shackle + Becket + Cam
Size	Size 3 (45 mm)
Sheave Diameter	30 mm / 58 mm
Sheave Size	30/58 × 13 mm (1 3/16" / 2 9/32" × 33/64")
Bearing Type	Plain Bearing
Number of Sheaves	Fiddle (Double)
Max Rope Diameter	10 mm (3/8")
Safe Working Load (SWL)	400 kg (881 lbs)
Break Load	800 kg (1763 lbs)
Weight	270 g
Dimensions	185 × 92 × 68 mm
Materials	30% glass fibre reinforced nylon cheeks, Acetal sheaves, stainless steel frame

Applications

Mainsheet and vang systems with integrated control
Downhauls and kicking straps
Multi-purchase systems with quick-release attachment
Dinghies and small cruising yachts

The Barton Size 3 fiddle blocks with cam cleat are engineered for efficient control and reliable load handling, delivering dependable performance in demanding sailing conditions. :contentReference[oaicite:0]{index=0}
