ID
1360405
$ 572.04
1-2 weeks delivery time
-
+
The Barton 24033 is a Size 2 beam aluminium track with a length of 1.8 metres, designed for traveller systems requiring unsupported spans across cockpits or companionway hatches. Its reinforced profile allows unsupported sections up to 700 mm on yachts up to 11.0 m (36 ft), or up to 900 mm on yachts up to 9.75 m (32 ft). The track delivers high structural rigidity and load capacity, with recommended fastening at 100 mm centres in supported areas. Manufactured from marine-grade aluminium with an anodised finish, it ensures durability and long-term reliability. Weight is 2988 g with overall dimensions of 1800 × 34 × 34.5 mm.
- Description
- Ask a Question
-

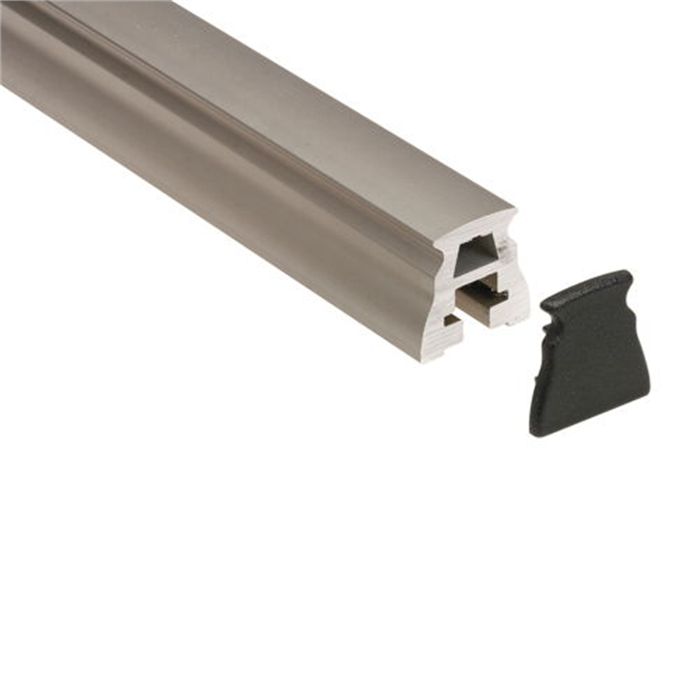

Barton 24033 - Beam Track Size 2 1.8m – Aluminium Traveller Beam Track, Grey Anodised, High Span Support
The Barton 24033 Beam Track Size 2 is a reinforced aluminium traveller track engineered for installations where unsupported spans are required, such as across cockpits or companionway hatches. With an extended 1.8 metre length, it provides increased traveller movement while maintaining structural integrity under load.
The beam profile is designed to support unsupported spans up to 700 mm on yachts up to 11.0 m (36 ft), or up to 900 mm on yachts up to 9.75 m (32 ft). Proper installation requires a minimum of three fastenings on each side of the unsupported section, positioned at 100 mm centres, with washers used to ensure a secure and watertight seal.
Key Features
- Size 2 beam track designed for unsupported spans
- Length 1.8 m for extended traveller installations
- Supports spans up to 700 mm (up to 11.0 m yachts)
- Up to 900 mm span for yachts up to 9.75 m
- Reinforced aluminium profile for high strength and rigidity
- Recommended fastening at 100 mm centres in supported sections
- Suitable for cockpit and companionway installations
- Marine-grade aluminium construction with anodised finish
Technical Specifications
Part Number 24033 Product Type Beam Track Track Size Size 2 Length 1800 mm Dimensions 1800 × 34 × 34.5 mm Max Unsupported Span 700 mm / up to 900 mm (depending on yacht size) Recommended Boat Size Up to 11.0 m (36 ft) / up to 9.75 m (32 ft) Fixing Recommendation 100 mm centres in supported sections Material Marine-grade aluminium, anodised Weight 2988 g
Applications
- Mainsheet traveller systems over cockpits
- Companionway hatch spanning installations
- Unsupported deck sections requiring structural support
- Medium to large cruising yachts
The Barton beam track provides a strong and reliable solution for unsupported installations, ensuring structural integrity and smooth traveller operation across open deck areas in demanding marine environments.
-
