ID
1360453
$ 1,295.33
1-2 weeks delivery time
-
+
The Barton 30053 is a Size 3 beam aluminium track with a length of 3.0 metres, designed for heavy-duty traveller systems requiring long unsupported spans across cockpits or companionway hatches. Its reinforced profile delivers maximum structural rigidity and high load capacity, suitable for demanding installations on larger yachts. Fastening is recommended at 100 mm centres in supported areas, with a minimum of three fixings on each side of the span. Manufactured from marine-grade aluminium with an anodised finish, it ensures durability and long-term performance. Weight is 6720 g with overall dimensions of 3000 × 40 × 40.5 mm.
- Description
- Ask a Question
-

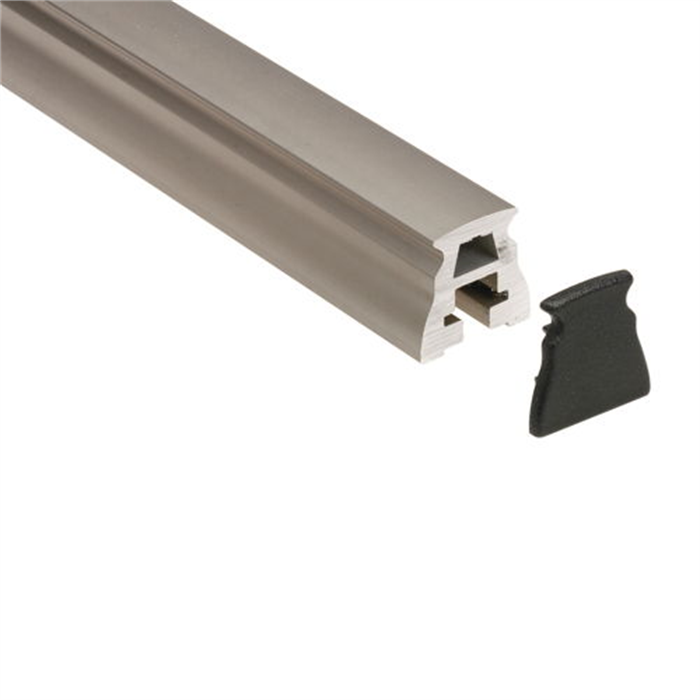

Barton 30053 - Beam Track Size 3 3.0m – Aluminium Traveller Beam Track, Grey Anodised, High Span Support
The Barton 30053 Beam Track Size 3 is a heavy-duty reinforced aluminium traveller track engineered for installations where unsupported spans are required, such as across cockpits or companionway hatches. With an extended 3.0 metre length, it provides maximum traveller range and exceptional structural strength.
The beam track profile delivers maximum rigidity and load-bearing capability, making it suitable for demanding marine environments. Installation requires a minimum of three fastenings on each side of the unsupported section, positioned at 100 mm centres in supported areas, with washers used beneath bolts and between track and deck to ensure a secure seal.
Key Features
- Size 3 beam track designed for heavy-duty unsupported spans
- Extended 3.0 m length for maximum traveller installations
- Reinforced aluminium profile for maximum strength and rigidity
- High load capacity for demanding marine applications
- Recommended fastening at 100 mm centres in supported sections
- Suitable for cockpit and companionway spanning installations
- Marine-grade aluminium construction with anodised finish
Technical Specifications
Part Number 30053 Product Type Beam Track Track Size Size 3 Length 3000 mm Dimensions 3000 × 40 × 40.5 mm Fixing Recommendation 100 mm centres in supported sections Material Marine-grade aluminium, anodised Weight 6720 g
Applications
- Mainsheet traveller systems over cockpits
- Companionway hatch spanning installations
- Unsupported deck sections requiring maximum structural support
- Medium to large cruising and racing yachts
The Barton beam track provides a high-strength solution for unsupported installations, ensuring structural integrity, durability, and smooth traveller operation in demanding sailing conditions.
-
