ID
1360358
$ 450.52
1-2 weeks delivery time
-
+

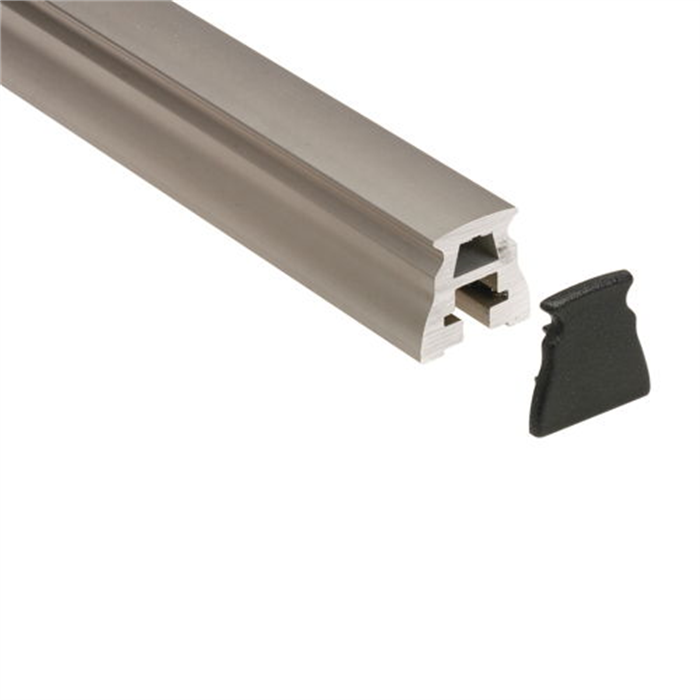

The Barton 20043 is a Size 1 beam aluminium track with a length of 2.4 metres, designed for traveller systems requiring unsupported spans across cockpits or companionway hatches. Its reinforced profile allows unsupported sections up to 400 mm on yachts up to 8.5 m (28 ft). The track provides excellent rigidity and load capacity, with recommended fastening at 100 mm centres in supported areas. Manufactured from marine-grade aluminium with an anodised finish, it ensures durability and reliable long-term performance. Weight is 2352 g with overall dimensions of 2400 × 26 × 27 mm.
- Description
- Ask a Question
-
Barton 20043 - Beam Track Size 1 2.4m – Aluminium Traveller Beam Track, Grey Anodised, High Span Support
The Barton 20043 Beam Track Size 1 is a reinforced aluminium traveller track designed for installations where unsupported spans are required, such as across cockpits or companionway hatches. With an extended 2.4 metre length, it provides increased traveller range while maintaining structural integrity.
The beam profile is engineered to support unsupported sections up to 400 mm on yachts up to 8.5 m (28 ft). Installation requires a minimum of three fastenings on each side of the unsupported section, positioned at 100 mm centres in supported areas, with washers used to ensure a secure and watertight seal.
Key Features
- Size 1 beam track designed for unsupported spans
- Extended 2.4 m length for greater traveller movement
- Supports spans up to 400 mm (yachts up to 8.5 m / 28 ft)
- Reinforced aluminium profile for increased rigidity
- Recommended fastening at 100 mm centres in supported sections
- Suitable for cockpit and companionway installations
- Marine-grade aluminium construction with anodised finish
Technical Specifications
Part Number 20043 Product Type Beam Track Track Size Size 1 Length 2400 mm Dimensions 2400 × 26 × 27 mm Max Unsupported Span 400 mm Recommended Boat Size Up to 8.5 m (28 ft) Fixing Recommendation 100 mm centres in supported sections Material Marine-grade aluminium, anodised Weight 2352 g
Applications
- Mainsheet traveller systems over cockpits
- Companionway hatch spanning installations
- Unsupported deck sections requiring structural support
- Cruising yacht traveller setups
The Barton beam track provides a strong and reliable solution for unsupported installations, ensuring structural stability and smooth traveller operation across open deck areas.
-
