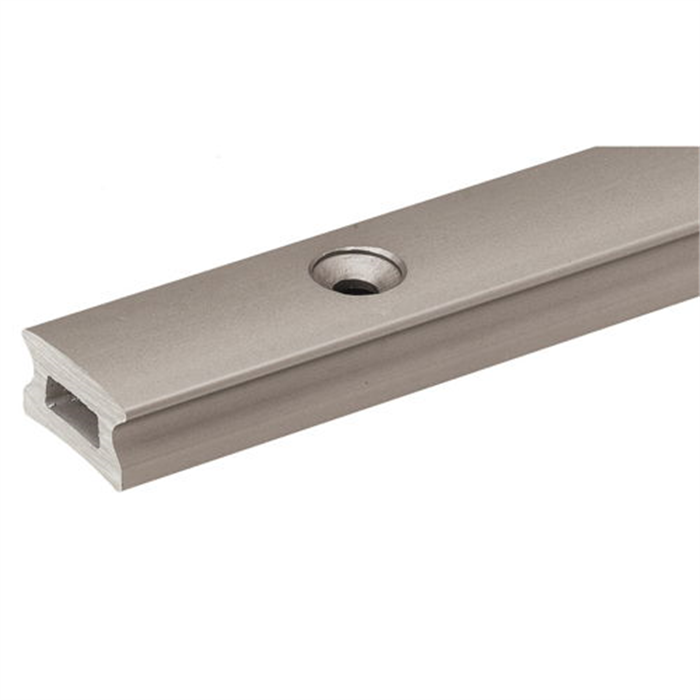

The Barton 18050 is a Size 0 drilled aluminium track designed for 16 mm dinghy traveller systems, with an extended length of 3.0 metres. Engineered for lightweight performance, it is compatible with recirculating ball bearing traveller systems and provides holding loads up to 130 kg. Manufactured from marine-grade aluminium with a durable grey or black anodised finish, it ensures corrosion resistance and smooth, low-friction operation. The track is drilled and countersunk at 50 mm centres with the first hole positioned 50 mm from the end. Weight is 1134 g with overall dimensions of 3000 × 20 × 12 mm.
- Description
- Ask a Question
-
Barton 18050 - Drilled Track Size 0 3.0m – 16mm Dinghy Traveller Track, Aluminium, Grey/Black Anodised, Pre-Drilled 50mm Centres
The Barton 18050 Drilled Track Size 0 is a lightweight aluminium track designed for 16 mm dinghy traveller systems. With an extended 3.0 metre length, it provides increased traveller movement and improved sail trim control on dinghies and small craft.
Part of Barton’s recirculating ball bearing traveller range, this track works with Delrin ball systems to deliver smooth, low-friction performance. Manufactured from marine-grade aluminium and finished in grey or black anodised coating, it ensures durability and resistance to harsh marine environments.
Key Features
- Size 0 traveller track for 16 mm dinghy systems
- Extended 3.0 m length for greater traveller range
- Compatible with recirculating ball bearing traveller cars
- Lightweight marine-grade aluminium construction
- Grey or black anodised finish for corrosion resistance
- Pre-drilled and countersunk at 50 mm centres
- First fixing hole positioned 50 mm from track end
- Holding load up to 130 kg
Technical Specifications
Part Number 18050 Product Type Drilled Traveller Track Track Size Size 0 (16 mm system) Length 3000 mm Dimensions 3000 × 20 × 12 mm Drilling 50 mm centres, countersunk First Hole Offset 50 mm from track end Material Marine-grade aluminium, anodised Finish Grey or black anodised Weight 1134 g Safe Working Load (SWL) 130 kg (286 lbs) Fastenings 4 mm
Applications
- Dinghy mainsheet traveller systems
- Dayboats and small sailing craft
- Performance dinghy rigging setups
- Lightweight traveller installations
The Barton 16 mm traveller track system provides a compact, efficient and reliable solution for dinghy applications, combining lightweight construction with smooth operation and consistent load handling.
-
