ID
1360509
$ 841.01
1-2 weeks delivery time
-
+
The Barton 44035 is a sliding pin Boomstrut designed for boats from 9 to 10.5 m (30–35 ft) with a maximum boom tip weight of 19 kg. Featuring flexible fibreglass rods and anodised fittings, it works with a kicker or rope vang to provide constant upward boom support, improving sail shape and preventing the boom from dropping when the sail is lowered.
- Description
- Ask a Question
-
Barton 44035 – Sliding Pin Boomstrut Size 44035, 9–10.5m Boats, Max Tip Load 19kg, White Rods

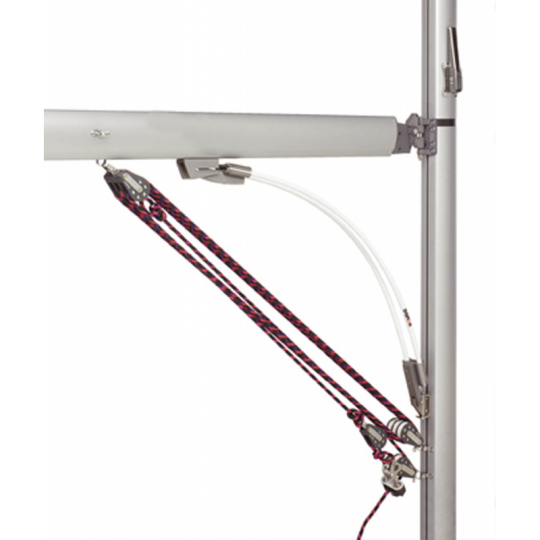

The Barton 44035 Sliding Pin Boomstrut is a high-capacity boom support system designed for yachts between 9 and 10.5 metres (30–35 ft). It operates in conjunction with a conventional kicker or rope vang, providing consistent upward force to maintain correct boom height and sail shape.

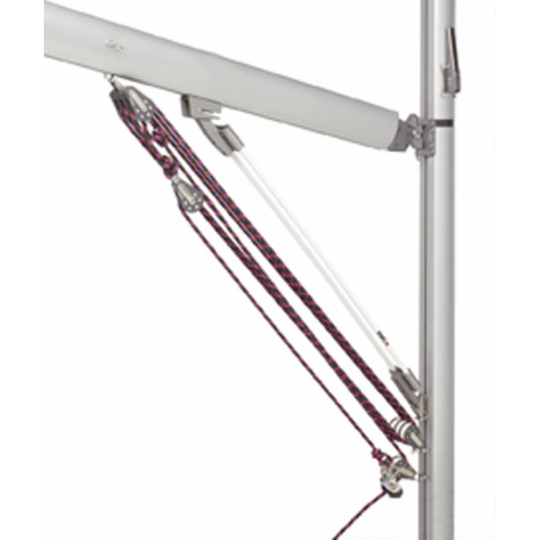

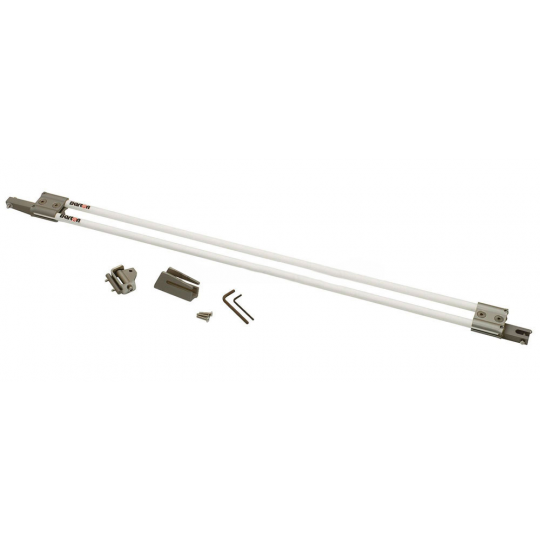

The system uses two flexible coated fibreglass rods that act as a spring mechanism. When the boom is pulled down, the rods flex; when released, they return to their natural position, lifting and supporting the boom. This ensures the boom remains elevated and controlled when the sail is lowered or the topping lift is not in use. :contentReference[oaicite:0]{index=0}
Key Features
- Sliding pin Boomstrut for boats 9–10.5 m (30–35 ft)
- Provides constant upward boom support
- Flexible fibreglass rod spring system
- Maintains sail shape in light wind conditions
- Prevents boom from dropping when sail is lowered
- Maintenance-free design with no sliding friction parts
- Lightweight, low-profile construction
- Compatible with aluminium, carbon fibre, and wooden spars
- Anodised boom and mast fittings for durability
Technical Specifications
Part Number 44035 Product Type Sliding Pin Boomstrut Recommended Boat Length 9–10.5 m (30–35 ft) Maximum Boom Tip Weight 19 kg (42 lbs) Pin-to-Pin Length 1320 mm Maximum Rod Reduction 150 mm Maximum Travel (Flex) 400 mm Max Stroke at Full Adjustment 200 mm Maximum Downward Force 230 kg (506 lbs) Weight 2340 g Dimensions 1350 × 62 × 50 mm Material Fibreglass rods with anodised aluminium and stainless steel fittings Finish White rods, anodised fittings
Applications
- Boom support systems for cruising and performance yachts
- Sail trim and boom height control
- Replacement for topping lift systems
- Integration with kicker or rope vang systems
- Suitable for slab reefing systems and stack packs
The Barton Boomstrut range delivers reliable, maintenance-free boom support, improving safety, reducing rigging complexity, and ensuring consistent sail performance in a wide range of sailing conditions.
-
